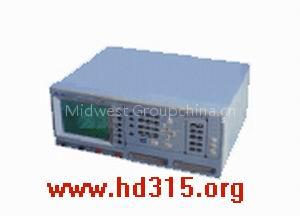

Integrated full-function wire tester

Integrated full-function wire tester Model:KDS77-75859 Cat.No:W75859

Product Description: 1, all Chinese large-screen display 2, fully programmable input 3, the system automatically scans automatically find point 4, readily available linear and Safety Test 5, fully programmable continuous test 6, providing 320 × 240 resolution graphic LCD display 7, offers a variety of interfaces, can be used for a variety of different applications 8, the system provides statistics and print functions 9, self-diagnosis, self-samples are zero 10, Accuracy: ± 5% Model Project CT-8681NCT-8681FA CT-8685FA Short / open circuit 2KΩ ~ 50KΩ2KΩ ~ 50KΩ Dislocation has a On-resistance 0.1Ω ~ 50Ω0.1Ω ~ 50Ω Insulation Resistance 1MΩ ~ 500MΩ1MΩ ~ 500MΩ/1000MΩ Instantaneous short on / off Yes Yes DC High Voltage 200VDC ~ 700VDC200VDC ~ 700VDC/1500VDC AC high-voltage / 200VAC ~ 500VAC/1000VAC Leakage current 0.1mA ~ 5mA0.1mA ~ 5mA Unilateral tests are there A single endpoint measurement with a Multi-stage tests are there O / S endpoint tell whether there is Component Test Resistor / Capacitor / Diode / Transistor Resistor / Capacitor / Diode / Transistor High-pressure duration 1 sec 0.01 ~ 0.01 ~ 1 seconds Information on types of self-learning reading and editing functions of self-learning and editing functions External interface RS-232 PRINT REMOTERRS-232 PRINT REMOTER LCD display 320 × 240 Chinese display screen 320 × 240 Large-screen displays in Chinese Fixture Connection 64PIN64PIN For more detailed statistical function Power 230VAC ± 10% 230VAC ± 10% Weight of about 14kg of approximately 14kg Operating temperature 10 ℃ ~ 35 ℃ 10 ℃ ~ 35 ℃ Working humidity ≤ 75% RH ≤ 75% RH Integrated full-function wire tester Model:KDS77-75859
