Listing ID#10050762
ModelPIC16F877A-I/P
CategoryIntegrated Circuits

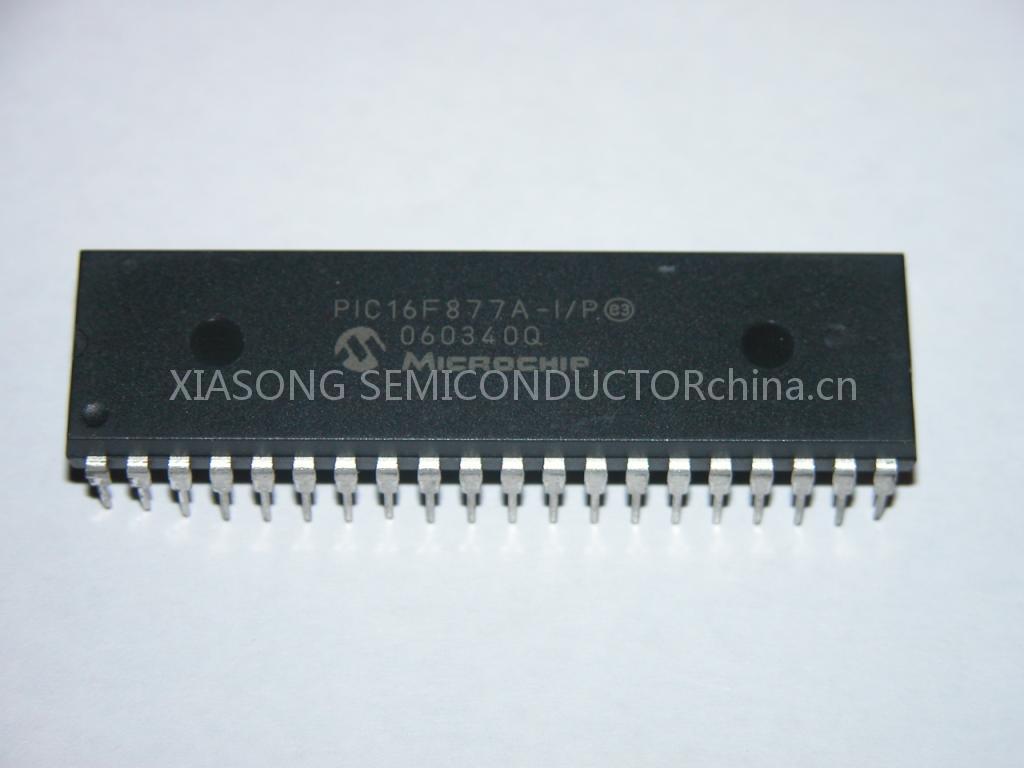

Integrated Circuits (ICs) -PIC16F877A-I/P
Specifications
- Origin
- Microchip Technology
Quick answer
Integrated Circuits (ICs) -PIC16F877A-I/P is a Integrated Circuits product. Key specs — Origin: Microchip Technology.
Product Description
| Quantity Available | 3,777 |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturer Part Number | PIC16F877A-I/P |
| Description | IC MCU FLASH 8KX14 EE 40DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Standard Package | 10 |
|---|---|
| Category | Integrated Circuits (ICs) |
| Family | Embedded - Microcontrollers |
| Series | PIC® 16F |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I /O | 33 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 368 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V |
| Data Converters | A/D 8x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| Packaging | Tube |
