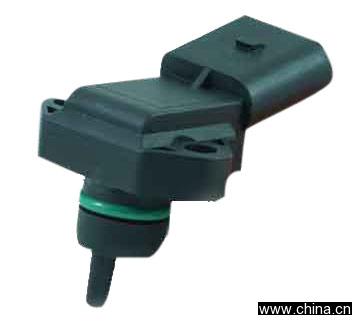

Intake Air Pressure (Temperature) Sensor (JS6100 Series)
Specifications
- Origin
- China (Mainland)
Quick answer
Intake Air Pressure (Temperature) Sensor (JS6100 Series) is a Sensors product. Key specs — Origin: China (Mainland).
Product Description
Absolute pressure: 0.1-0.4MPa (pressurization)Supply power: 5V DC, steady voltage Output signal: 0.5-4.5V DCOver loading pressure: 200% FSAtmospheric pressure: 86-108KPa Environment temperature: 0-98% RHCompensating temperature: -40~+125癈Operating temperature: -55~+150癈Response time: not greater than 8ms Precision: 1-5% FS (including non-linearity hysteresis error and repeatability)Temperature influencing: zero error ?.5% (full temperature range); range error?.5% (full temperature range)producing area:China
