Insulation Resistance Testers
Specifications
- Brand
- Midwest-g
- Origin
- CHINA
Insulation Resistance Testers is a Battery Testers product. Key specs — Brand: Midwest-g; Origin: CHINA.
Product Description

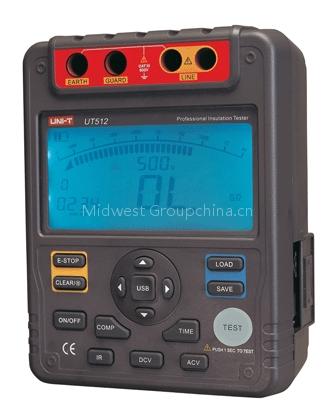

Insulation Resistance Testers Model:YLD9-UT512 Cat.No:W76387
SPECIFICATIONS Basic Functions Range Best Accuracy Insulation Resistance 0.5MΩ ~100GΩ (3%+5) Testing Voltage 500V/1000V/1500V/2500V 0~20% DC Voltage 600V (2%+5) AC Voltage 600V (2%+5) Special Functions Auto Ranging Short Circuit Current <1.8mA Data Logging 18 Data Recall Sleep Mode Polarization index (PI) Dielectric Absorption(DAR) Timer Around 15 minutes Compare Battery Display White Display Backlight Over Range and High Voltage Warning USB Max.
Display 9999 Analogue Bar Graph GENERAL CHARACTERISTICS Power 1.5V Alkaline Battery(LR14)×8 LCD Size 123 mm x 58 mm Product Color Red and Grey Product Net Weight 1.8Kg Product Size 202×155×94mm Standard Accessories 2 pcs of one plug test lead to one alligator clip (black and Green), 1pc of two plugs test lead to one alligator clip (Red), Batteries, English Manual , Tool Box, USB Interface Cable, Software Optional Accessories* Power Adapter Standard Individual Packing Gift Box Standard Quantity Per Carton 4 pcs Standard Carton Measurement 525 × 335 × 345mm (0.061 CBM Per Standard Carton) Standard Carton Gross Weight 18kg Insulation Resistance Testers Model:YLD9-UT512
