Insulating glass machine

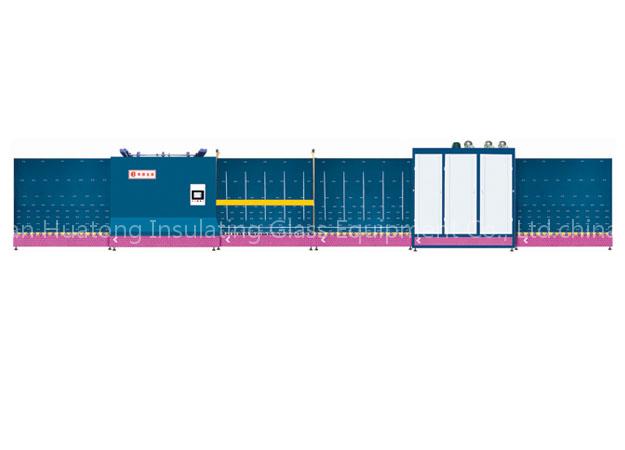

Insulating glass machine The line is special equipment making aluminum groove type insulating glass, which consist of a vertical glass washing machine, a setting aluminum frames, one on one by flat press and a turning table.

It can perform main functions such as washing and drying of insulating glass, positioning of aluminum frames, automatic one on one by flat press, setting level and shifting out of insulating glass and so on in the process of making aluminum groove type insulating glass.

This line is high in efficiency, low in energy consumption, compact in structure and easy to operate Functions characteristics: LOW-E insulating Glass production line Automatic control function for LOW-E Glass It is transmitted by a wheel, steadily and reliably Automatic adjust function for pressing with hydraulic compression Tilting table with hydraulic pressure Monitor using system temperature/speed/production volume Mechanical trouble cheek Whole line control function with 1monitor Technique parameter: Max , glass size 1800*2500mm Min , glass size 200*450mm Glass thickness 3-50mm Thickness of washing glass UP TO 50mm Max, in washing section 12m/min Max, in accelerating 48m/min Brush 3pair(LOW-E) Power 28kw(380V)/50-60Hz Size of line 16500*2350*3000mm We also produce accessory equipment: LQZ01 Automatic spacer bending machine; Automatic Desiccant/Molecular Sieve Filling Machine (FZJ01); Glass Rubber Coating Machine; DJJ02 Butyl Rubber Coating Machine; LQJ01 Aluminum Spacer Bar Cutting Machine; HZM8325C Glass Edge Grinding Machine; ST03 Bicomponent Rubber Coating Machine; Molecular Sieve Filling Machine MSF; Insulating Glass Aluminum Bar Bending Machine LWJH2000 And so on
