Listing ID#10164929
ModelZZT5051XBM
CategoryTruck Parts

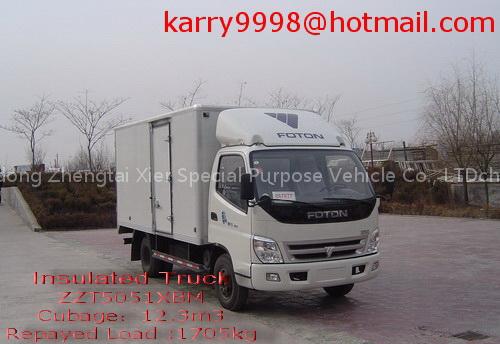

Insulated Van ZZT5051XBM
Specifications
- Brand
- FAW, DONGFENG, JAC, JMC, ISUZU,FOTON
- Origin
- Zhucheng City
Quick answer
Insulated Van ZZT5051XBM is a Truck Parts product. Key specs — Brand: FAW, DONGFENG, JAC, JMC, ISUZU,FOTON; Origin: Zhucheng City.
Product Description
3C Authentication (China Compulsory Certification). Our Products have been put up to county’s auto announcement directory. And all special performance index has been up to national A-class standards.
| Model | ZZT5051XBW | ||
| CHASSIS | Model and ID NO. | JX1051TGA23\1225121 | |
| Category | â…¡ | ||
| Manufacturer | |||
| Axle | 2 | ||
| Wheelbase(mm) | 3360 | ||
| Wheel Track(Front/Rear mm) | 1385\1425 | ||
| Tyre Size | 7.00R16LT | ||
| Tyre | 6 | ||
| ENGINE | Model | JX493ZLQ3 | |
| Manufacturer | |||
| Delivery Capacity(ml) | 2771 | ||
| Fuel | Diesel | ||
| Rated Power(Kw) | 85 | ||
| Emission Standard | GB17691-2005â…¢,GB3847-2005 | ||
| FRAME | Front | Type | Steel Plate Spring |
| Quantity | 7 | ||
| Rear | Type | Steel Plate Spring | |
| Quantity | 4+5 | ||
| CAR LOAD | Dimension Parameters | Overall Dimensions(mm) | 5995×1880,1930×2790 |
| L*W*H | |||
| Interior Cargo Body Dimentions(mm) | 4180×1710×1730 | ||
| L*W*H | |||
| Cubage(m3) | 12.3 | ||
| Front Overhang/Rear Overhang(mm) | 1065/1570 | ||
| Quality Parameters | Approch Angle/Departure Angle | 27/18.5 | |
| Curb Weight(Kg) | 3000 | ||
| Rated Payload(Kg) | 1705 | ||
| Gross Vehicle Weight(Kg) | 4835 | ||
| Max. Speed(km/h) | 100 | ||
| Person In Cab(Persons) | 2 | ||
