Listing ID#10096737
ModelTY-366
CategoryOther Plastic & Rubber Machinery

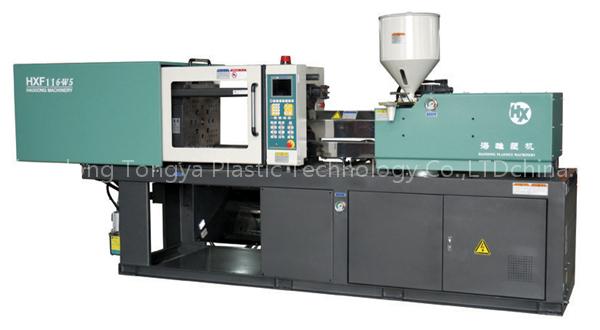

Injection Machine
Specifications
- Brand
- Tongya
- Origin
- China
- Price Term
- FOB
Quick answer
Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Tongya; Origin: China; Price Term: FOB.
Product Description
| TYF-366 | 　 | 　 | 　 | 　 |
| Injection Unit | 　 | A | B | C |
| Screw Diameter | mm | 65 | 70 | 75 |
| Screw L/D Ratio | L/D | 22.6 | 21 | 19.6 |
| Injection Capacity Theory | cm3 | 995 | 1155 | 1325 |
| Injection Weight | g | 926 | 1074 | 1232 |
| Injection Pressure | Mpa | 182 | 157 | 137 |
| Injection Rate | g/s | 245 | 284 | 326 |
| Platicizing Capacity | g/s | 33 | 41 | 49 |
| Screw Speed | rpm | 136 | ||
| Clamping Unit | 　 | 　 | ||
| Clamping Force | Kn | 3660 | ||
| Moving mould-plate stroke | mm | 660 | ||
| Max.mould height | mm | 750 | ||
| Min. mould height | mm | 250 | ||
| Space between tie-bars | mm | 670x670 | ||
| Hydraulic Ejector Force | Kn | 70 | ||
| Hydraulic Ejector Stroke | mm | 160 | ||
| Ejector Number | n | 13 | ||
| Other | 　 | 　 | ||
| Pump Prssure | Mpa | 16 | ||
| Motor Power | Kw | 30 | ||
| Heating Capacity | Kw | 19.93 | ||
| Machine Dimension | m | 7.21x1.82x2.24 | ||
| Machine Weight | t | 12 | ||
