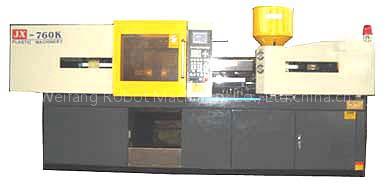

Injection Machine
Specifications
- Brand
- Robot
- Origin
- China
Quick answer
Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Robot; Origin: China.
Product Description
| Item | Type | JX-760 | |||
| A | B | C | |||
| INJECTION UNIT | Screw diameter | mm | 32 | 34 | 36 |
| Screw length/diameter ratio | 22.3 | 21 | 19.8 | ||
| Shot size(theoretical) | cm3 | 115 | 130 | 145 | |
| Injection weight | g | 100 | 115 | 130 | |
| Injection rate | g/s | 85 | 97 | 100 | |
| Plasticizing capacity | g/s | 10.6 | 12 | 14 | |
| Injection pressure | Mpa | 170 | 152 | 145 | |
| Screw speed | rpm | 0-200 | |||
| CLAMPING UNIT | Clamp tonnage | kN | 760 | ||
| Toggle Stroke | mm | 270 | |||
| Space between tie-bars | mm | 320X300 | |||
| Max.mould height | mm | 325 | |||
| Min.mould height | mm | 150 | |||
| Ejector stroke | mm | 65 | |||
| Ejector tonage | kN | 22 | |||
| Ejector number | 1 | ||||
| OTHERS | pressure | MPa | 16 | ||
| Pump motor power | kW | 7.5 | |||
| Heater power | kW | 5 | |||
| Machine dimensions(LxWxH) | m | 3.5X1.2X1.6 | |||
| Weight | t | 2.2 | |||
| Feeding Size | kg | 15 | |||
| Oil box Size | l | 160 | |||
Standard sets:
multilevel pressure and speed ejector adjust, pressure adjust set, high speed close mold, low pressure protect, multi-quake ejector, machine and electron safe sets, lubrication system, oil-pressure scale control, computer control, mold remember system. Our company is able to replace multi-capacity molding computer of standard sets control part to program control or relay figure control.
Standard equipment:
Spare equipment, mold pressure board
