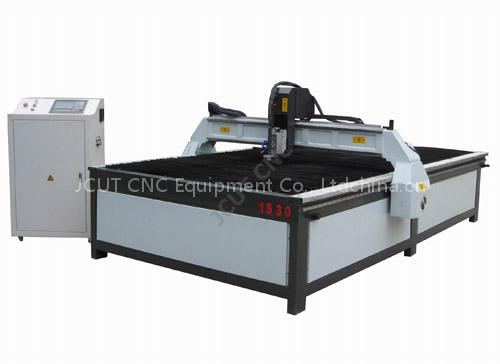

Industrial plasma cutting machine JCUT-1530

Features:

1 .The machine is all welded as seamless steel structure. Steady structure and long life time

2. High configuration, high cutting speed and precision.

3., Auto ARC starting. Steady performance.

4, Control system: DSP handset control, with USB interface

5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.

6. File format: G-code

7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.

Application

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

Technical specifications

Model:JCUT-1530

X,Y working area : 1500×3000mm

Lathe bed: Steel structure with water sink

Cutting speed: 0-8m/min

Travelling speed: 0-50m/min

Power :8.5KW-10.5KW

Voltage:380V/50HZ

Driver motor:stepper

Interface:USB

Arc starting way:Contactless arc starting

Driving mode:Wheel gear

Highly of Z axis:Arcing voltage to reset to higher

ptional

1, Different working size:/1500X3000MM /2000X4000MM or other sizes according to customers’ needs

2, Servo motors and drivers

3, Different power: 65A / 100A / 130A /200A for different thickness cutting

4, Torch Height control system.
