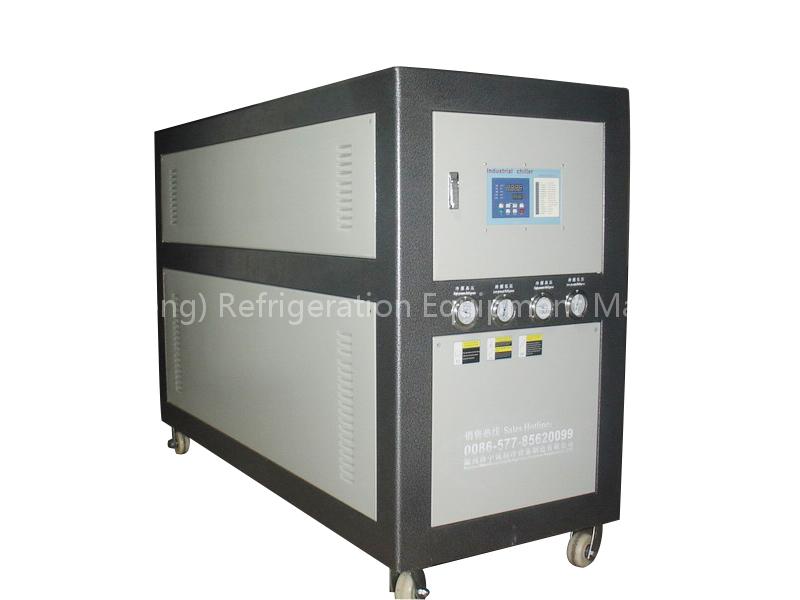

Industrial Chiller (Water Cooling)

ZCL-xxS Industrial Water Cooling Machine is designed of case type, totally-enclosed case shell,and beautiful appearance. It can be placed directly on the working site, keep constant running ever under changeable temperature outdoors and pervent dust from influencing heat elimination.

Main machine use fire-new scroll compressor of famous barnd imported from America and Japan,equipped with safety protection,low noise,energy-saving and durable. Electric control part use fames brand LG original binding products which can search failure automatically and display it on the screen at the same time to ensure the machine operate steadily. Evaportor adopt high-efficiency U type screw tube,with pump inside,clean and maintenance easily and quickly. Condenser is consistant by fin type aluminum foil and high-effciency screw tube, with rational design and in good heat exchange effect. This unit taken electrostatic plastic spraying shell,Europeanize design in elegant appearance,it can saving room space. Only need to connect the pipe with source of water and electricity when installation. Low running maintenance charge Air cooling assistant water cooling,when this machine is operated

Under high temperature,we can use air cooling together with water cooling to win the best effect of heat abstraction .
Equipped with energy-saving device inside, can save the energy by more 20% than other like unit aggregate running with several compressor, have widely adjust range for cooling capacity.
Scroll compressor operate reliable and need less maintanance unit has two cooling loops, even if one of them is damaged, the other one also can run normally. It can reduce the impact of halt caused by failure greatly(machine smaller than ZCL-12S only have single loop).

Note : mean ZHONGCHENG mean Parameter 3. S mean Water Cooling Mode

Item		ZCL-03S	ZCL-05S	ZCL-08S	ZCL-10S	ZCL-12S	ZCL-16S	ZCL-20S	ZCL-26S	ZCL-30S	ZCL-40S	ZCL-50S
Refrigerating Capacity	W	8420	14285	22358	29036	35305	44715	56678	72590	84785	112078	142276
	Kcal/Hr	7250	12300	19250	25000	30400	38500	48800	62500	73000	96500	122500
	Btu/Hr	28768	48806.4	76384	99200	120063	152768	193638.4	248000	249664	382912	486080
Input Power(KW)		2.8	4.2	6.7	8.3	10.2	13.3	16.2	20.9	25	33.2	42.5
Power		3PH-380V/50Hz/60Hz
Refrigerant		R22(404A)
Cooling Water Flow (L/min)		50	80	130	160	210	260	350	400	530	660	800
Cooling Water Outlel&Inler (in)		1-1/4"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"
Ambient temp		≤40℃
Refrigerating Water Flow (L/min)		90	90	210	210	210	600	600	600	800	800	800
Refrigerating Water Outlet&Inlet (in)		3/4"	1"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	2"	2"	2-1/2"	2-1/2"	3"
Volume of Water Tank(L)		70	130	220	220	300	300	400	400	500	500	500
External Dimension	L/(mm)	950	1280	1150	1150	1320	1320	1530	1530	1800	2300	2300
	W/(mm)	680	680	700	700	800	800	880	880	900	1000	1000
	H/(mm)	1200	1300	1450	1450	1450	1450	1600	1600	1250	1250	1250
Weight(KG)		110	145	170	240	320	450	520	640	750	830	930

Note : The Above-listed technical parameters are based on the ambient 35℃, Refrigerating water temp at 20℃,Cooling water temp at 30℃.To guarantee constant improvement of technology, the above parameters shall be changed without further notice. Other specification are on request.
