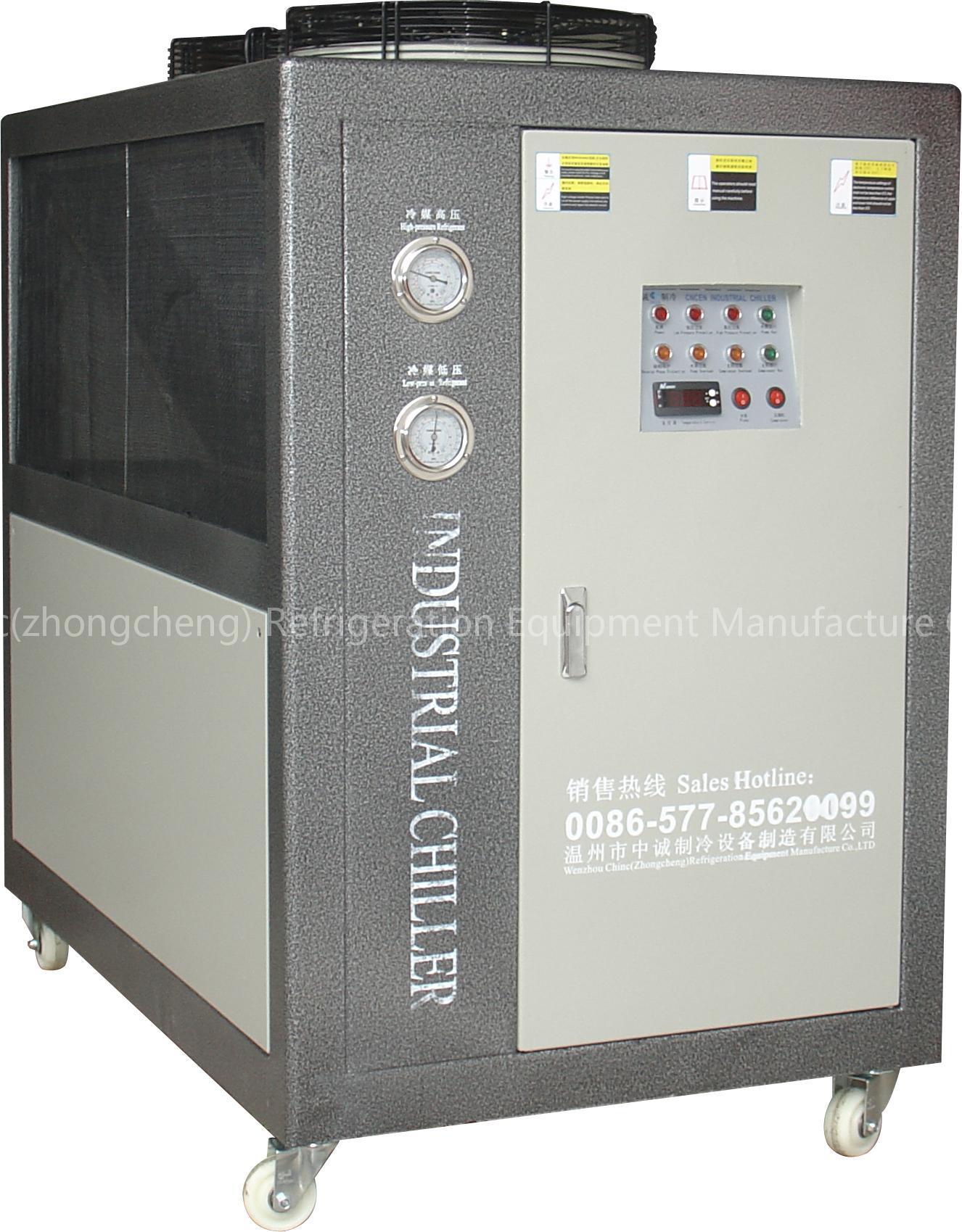

Industrial Chiller (Air Cooling)

ZCL-xxF Series lndustrial Water Cooling Machine can be installed easily and it is unnecessary to be used with cooling tower. There are various specifications of machines available and cooling range varies from 7250 to 245000 kilocalories (3HP-100HP). The unit is designed with multiple safety protections to ensure safe operation.

Main machine use fire-new scroll compressor of famous barnd imported from America and Japan,equipped with safety protection,low noise,energy-saving and durable. Electric control part use famous brand LG original binding products which can search failure automatically and display it on the screen at the same time to ensure the machine operate steadily. Evaportor adopt high-efficiency U type screw tube,with pump inside,clean and maintenance easily and quickly. Condenser is consistant by fin type aluminum foil and high-effciency screw tube, with rational design and in good heat exchange effect. This unit taken electrostatic plastic spraying shell,Europeanize design in elegant appearance,it can saving room space. Only need to connect the pipe with source of water and electricity when installation. Low running maintenance charge Air cooling assistant water cooling,when this machine is operated

Under high temperature,we can use air cooling together with water cooling to win the best effect of heat abstraction .
Equipped with energy-saving device inside, can save the energy by more 20% than other like unit aggregate running with several compressor, have widely adjust range for cooling capacity.
Scroll compressor operate reliable and need less maintanance unit has two cooling loops, even if one of them is damaged, the other one also can run normally. It can reduce the impact of halt caused by failure greatly(machine smaller than ZCL-12F only have single loop).

Note : mean ZHONGCHENG mean Parameter 3. F mean Air Cooling Mode

Item		ZCL-03F	ZCL-05F	ZCL-08F	ZCL-10F	ZCL-12F	ZCL-16F	ZCL-20F	ZCL-26F	ZCL-30F	ZCL-40F	ZCL-50F
Refrigerating Capacity	W	8420	14285	22358	29036	35305	44715	56678	72590	84785	112078	142276
	Kcal/Hr	7250	12300	19250	25000	30400	38500	48800	62500	73000	96500	122500
	Btu/Hr	28768	48806.4	76384	99200	120063	152768	193638.4	248000	249664	382912	486080
Input Power (KW)		2.8	4.2	6.7	8.3	10.2	13.3	16.2	20.9	25	33.2	42.5
Power		3PH-380V/50Hz/60Hz
Cooling Fan (KW)		0.18×1	0.25×2	0.25×2	0.25×2	0.55x2	0.55×2	0.55×2	0.25×4	0.55×3	0.55×4	0.55×6
Ambient temp		≤40
Refrigerant		R22(404A)
Volume of Water Tank(L)		70	130	220	220	300	300	400	400	500	500	500
Refrigerating Water Flow (L/min)		90	90	210	210	210	600	600	600	800	800	800
Refrigerating Water Outlet&Inlet (in)		3/4"	1"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	2"	2"	2-1/2"	2-1/2"	3"
External Dimension	L/(mm)	950	1280	1250	1250	1500	1500	2480	2480	2480	2500	3000
	W/(mm)	680	680	760	760	850	850	900	900	900	1500	1500
	H/(mm)	1200	1300	1350	1450	1450	1450	1600	1600	1600	1800	1800
Weight(KG)		135	175	310	450	530	750	835	920	1080	1125	1250

Note : The above-listed technical parameters are based on the ambient 35, water temp at guarantee constant improvement of technology, the above parameters shall be changed without further notice. Other specification are on request.
