Listing ID#10095400
ModelZCL-xxA
CategoryOther Plastic & Rubber Machinery

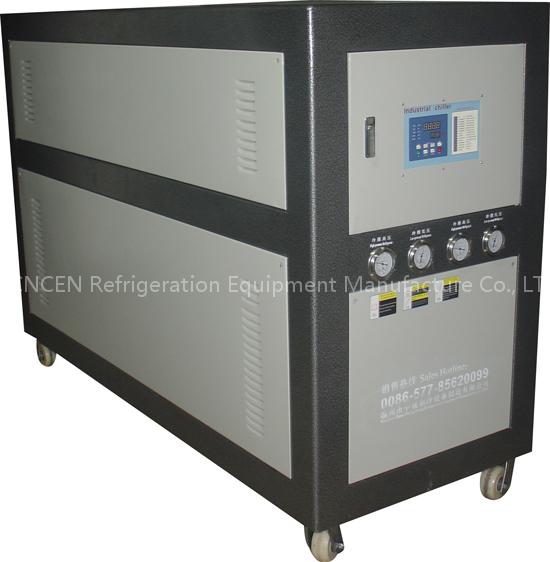

Industrial Chiller
Specifications
- Brand
- CHINC
- Origin
- CHINA
- Price Term
- FOB
Quick answer
Industrial Chiller is a Other Plastic & Rubber Machinery product. Key specs — Brand: CHINC; Origin: CHINA; Price Term: FOB.
Product Description
Note : mean ZHONGCHENG mean Parameter 3. S mean Water Cooling Mode
| Item | ZCL-03W | ZCL-05W | ZCL-08W | ZCL-10W | ZCL-12W | ZCL-16W | ZCL-20W | ZCL-26W | ZCL-30W | ZCL-40W | ZCL-50W | |
Refrigerating Capacity | W | 8420 | 14285 | 22358 | 29036 | 35305 | 44715 | 56678 | 72590 | 84785 | 112078 | 142276 |
| Kcal/Hr | 7250 | 12300 | 19250 | 25000 | 30400 | 38500 | 48800 | 62500 | 73000 | 96500 | 122500 | |
| Btu/Hr | 28768 | 48806.4 | 76384 | 99200 | 120063 | 152768 | 193638.4 | 248000 | 249664 | 382912 | 486080 | |
Input Power(KW) | 2.8 | 4.2 | 6.7 | 8.3 | 10.2 | 13.3 | 16.2 | 20.9 | 25 | 33.2 | 42.5 | |
Power | 3PH-380V/50Hz/60Hz | |||||||||||
Refrigerant | R22(404A) | |||||||||||
Cooling Water Flow (L/min) | 50 | 80 | 130 | 160 | 210 | 260 | 350 | 400 | 530 | 660 | 800 | |
| 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | |
Ambient temp | ≤40 | |||||||||||
Refrigerating Water Flow (L/min) | 90 | 90 | 210 | 210 | 210 | 600 | 600 | 600 | 800 | 800 | 800 | |
| 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | |
Volume of Water Tank(L) | 70 | 130 | 220 | 220 | 300 | 300 | 400 | 400 | 500 | 500 | 500 | |
| External Dimension | L/(mm) | 950 | 1280 | 1150 | 1150 | 1320 | 1320 | 1530 | 1530 | 1800 | 2300 | 2300 |
| W/(mm) | 680 | 680 | 700 | 700 | 800 | 800 | 880 | 880 | 900 | 1000 | 1000 | |
| H/(mm) | 1200 | 1300 | 1450 | 1450 | 1450 | 1450 | 1600 | 1600 | 1250 | 1250 | 1250 | |
| Weight(KG) | 110 | 145 | 170 | 240 | 320 | 450 | 520 | 640 | 750 | 830 | 930 | |
Note : The Above-listed technical parameters are based on the ambient 35, Refrigerating water temp at 20,Cooling water temp at guarantee constant improvement of technology, the above parameters shall be changed without further notice. Other specification are on request.
