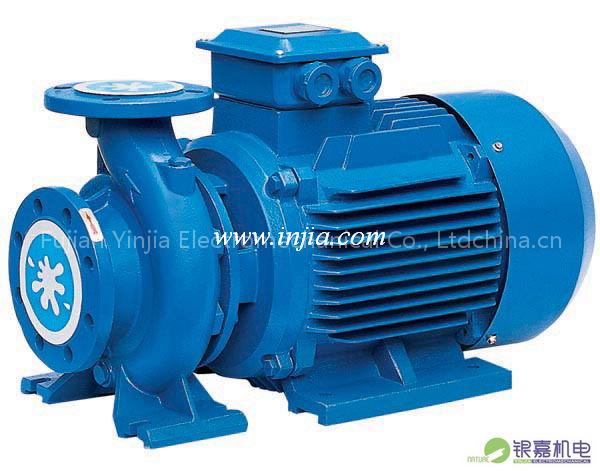

Industrial Centrifugal Pump

Performance parameters of CM series industrial centrifugal pumps:
1. Power: 1-30hp
2. Suction lift: 7-9m
3. Total head: 18-95m
4. Flow: 400-3600 L/min
5. Voltage and frequency: 110V/220V/380V, 50HZ/60HZ

Where could we use them?
Generally speaking, our CM series industrial centrifugal pumps are applicable for pumping chemically non-aggressive fluids. They are also suitable for pumping other liquids which has close chemical and physical characteristics to water. They are not suitable for pumping liquids with solid grains or funicle.
1. Our centrifugal pumps are excellent choices for warm water circulation in heating and conditioning systems.
2. Used for supplying clean water in civil and industrial applications.
3. As a result of their wide range of head (18-95m), our industrial centrifugal pumps can supply water to a very high height. Therefore, they are especially suitable for supplying water in fire fighting and construction works.
4. To supply water for irrigation.

Application limits:
1. Maximum operating pressure: 10bar
2. Maximum ambient temperature: +40℃
3. Maximum temperature: +100℃
4. Maximum altitude: +1,000m

Design parameters:
1. Pump body: Cast iron
2. Impeller: Brass/plastic/cast iron
3. Mechanical seals: Nbr/graphite/ceramic
4. Suction and discharge flanges are available upon request.

Electrical motor parameters:
1. Our CM series industrial centrifugal pump is equipped with a 2-pole induction motor.
2. Insulation class: B/F
3. Protection: IP44/IP54
4. Continuous duty: S1
5. Rotational speed: 2,850-2,900rpm
6. Enclosure: aluminium or cast iron
7. Shaft: carbon steel/Welded stainless steel/stainless steel

Product standards:
Our CM series industrial centrifugal pump is in conformation with EN600341, IEC34-1, CEI2-3, GB5657-94, DIN24255 and ISO2548 standards.
