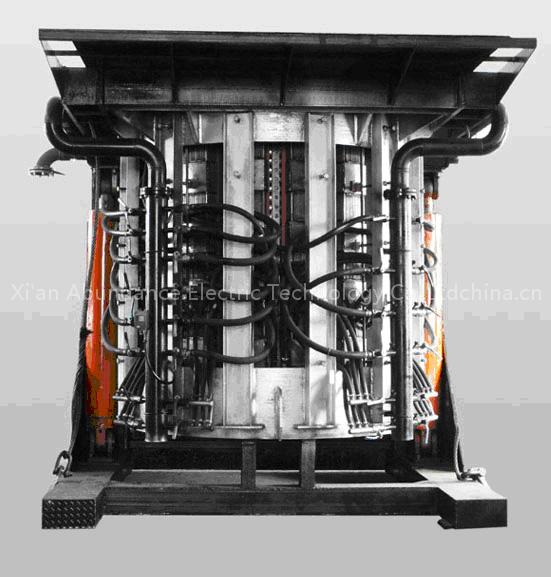

Induction Melting Furnace

Induction Melting Furnace is an electric furnace, which is mainly used for melting steel, casting iron, copper, aluminum and other precious metals. Owing to its advantage,Energy-Efficient and Well-Controllable melting process, now most of foundries have used this type furnace to melt, replacing cupolas, and its capacity range from one kilogram to one hundred tonnes, according to client requirements.

The frequency of operation of induction furnace also vary. Usually it depend on the material being melted, the capacity of the furnace and the melting speed required. A high frequency furnace is usually faster to melt a charge whereas lower frequencies generate more turbulence in the metal, reducing the power that can be applied to the melt.

Technical Parameter :

Model	Capacity	Rate Power	Input Voltage	Working Freq.	Melting rate	Power Consumption	Transformer Capacity
	Ton	Kw	V	Hz	T/H	Kw.h/t	Kva
GW-AL-0.05	0.05	30	380	2500	0.05	680	50
GW-AL-0.15	0.15	100	380	1000	0.2	670	160
GW-AL-0.25	0.25	160	380	1000	0.3	670	200
GW-AL-0.35	0.35	200	380	1000	0.5	660	250
GW-AL-0.5	0.5	250	380	1000	0.8	630	315
GW-AL-0.75	0.75	350	380	1000	1	620	400
GW-AL-1	1	500	660	500	1.2	580	630
GW-AL-1.5	1.5	750	660	500	2.3	570	800
GW-AL-2	2	800	660	300	3.5	570	800-1000
GW-AL-3	3	1000	660	300	5	560	100-1250
