India Planomilling Conversion Kit

Specifications: , specialises planomilling conversions by retrofitting milling head on the existing tool post carriage and by super-imposing a table drive unit. Shenoy Engg have converted more than 500 planers into planomillers in the past 12 years.

A converted planomiller boosts up the productivity of the planer by several times and earns back the small investment within a year. It adds a new lease of life to the worn out old planers, since, after planomilling conversion, not only the table speed is drastically reduced, but also the cutting load is taken over by the self-powered milling head.

Milling heads are offered from 5 HP onwards. Different types of table drive units are offered. M/S Shenoy Engg offers to convert the planer into planomiller at customer\'\'s works on turn-key basis.

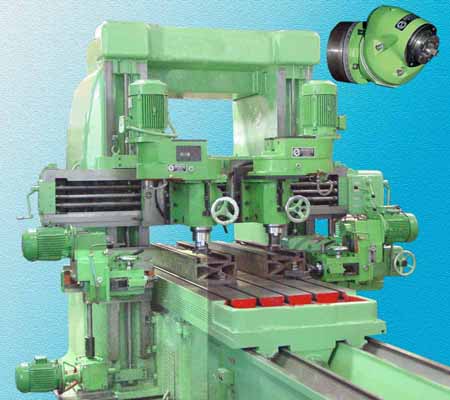

Combination of a vertical milling head and a swivel based right angle attachment, as shown in the photograph, adds the capability of floor borer to the converted planomiller. The same combination permits machining at right angles the top and all the four sides of a rectangular job in the same set up.

Cup wheel and peripheral wheel grinding heads are also offered to add slideway grinding and surface grinding capabilities to a planer.
