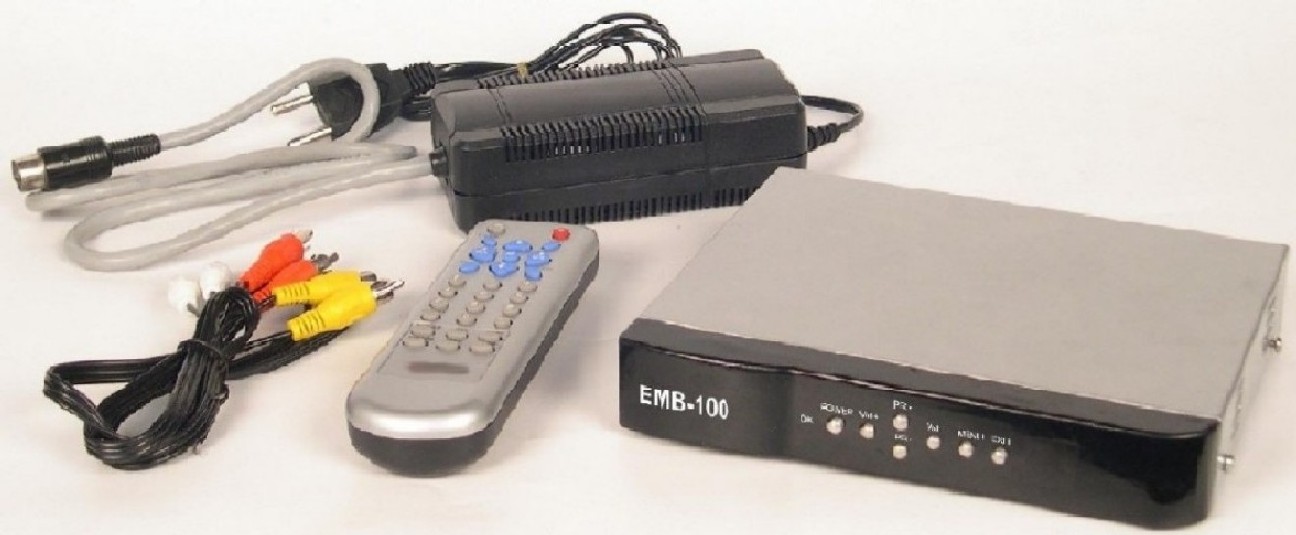

India Free To Air Set Top Box

Specifications: Hardware: RF Input 950-2150 MHz Input Level -25 to 65 d Bm Channel Selection PLL synthesizer System DVB-S Modulation QPSK Input Impedance 75 C/N Ratio Complying to DVB-S Connector (I/P) 75 f-type female Symbol Rate 1 to 45 MSPS Video Decoder MPEG-II ISO/IEC 13818 Profile Level MPEG-II Video Format 4:3, 16:9 Video Transfer Rate 15 Mbps TS Data Rate 60 Mbps Video Resolution 720 x 576 PAL Audio Decoder MPEG-I, MPEG-II Audio Mode Mono, Stereo Sampling Rate 32, 44.1, 48KHz Memory: Flash 4 Mb / 8 Mb / 16 Mb SDRAM 8 Mb EEPROM 64 Kb CPU STi5518 A/V Output Video: 1 x RCA, Audio: 2xRCA Data Port RS232 Features: Fully DVB/MPEG-II Compliant MPEG-II Video () MPEG-I Audio layer I,II & III Tele-text support Favorite channel list Last channel memory function EPG (Electronic Programming guide) Parental Lock Volume control Power recovery function Auto Scan Complete Editing functions Digital audio Software user enhancements and software upgradeable Via RS232 Game support Zoom functions Sleep timer function Display of channel numbers and channel name on the TV screen OSD and user friendly menu
