Listing ID#10014706
CategoryLighting Transformers

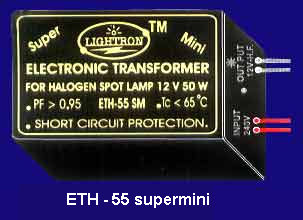

India Electronic Transformer 12 V 50 W
Specifications
- Origin
- India
Quick answer
India Electronic Transformer 12 V 50 W is a Lighting Transformers product. Key specs — Origin: India.
Product Description
Specifications: Physical: Size(lxwxh) 47x29x19 mm Weight 60 gms. Electrical: Input supply 240 v 50/60 hz. Input current 210ma Input power 55 va max. Power factor > 0.95 Output voltage 12v ac Output current 4 amp. Output load 50 watt Output frequency 50 khz Environmental: Emi/rfi conf. To iec-1000-4. Humming noise not at all Ambient temp.(ta) 60 c max. Max. Casetemp(tc) 20 c above ta
