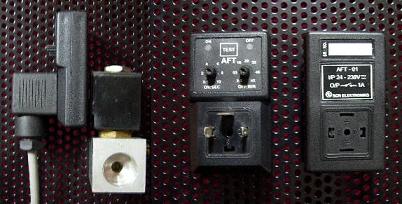

India Auto Flush Timer is a Auto Meter product. Key specs — Origin: India.
Product Description
Specifications: Introduction: This circuit is a cyclic timer, with independently adjustable on and off periods. The on and off periods can be adjusted thro two PCB mounted trimmer potentiometers from a few seconds to approximately 45 minutes.
It includes a relay which can handle loads from 24v to 230v AC or DC Features: * multi-voltage timers: Input voltage:24 v to 240 v AC/DC * current capacity (switching):1 amp max. * on time:0.5 to 10 sec. Adjustable. * off time:0.5 to 45 min.
Adjustable. * milliseconds, seconds, minutes and hour cycles possible * timer reset facility. * ABS housing. * compact in size:75mm x 42 mm x 20mm * weight:45gms. * long life durability. * test button. * power connection contacts. * mountable to any din form a or b solenoid valve; consult factory. * mountable in any position. * consult factory for private labeling. * analog type.
Applications: * to operate solenoid valves * to drain compressor * flushing, any cyclic auto on operation
