ISO14443A HF RFID Module-SL025M
Specifications
- Origin
- d-think
- Price Term
- EX-Work
- Payment Term
- T/T
ISO14443A HF RFID Module-SL025M is a Wires, Cables & Cable Assemblies product. Key specs — Origin: d-think; Price Term: EX-Work; Payment Term: T/T.
Product Description

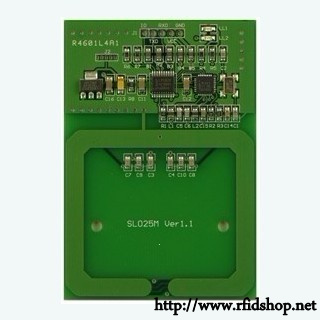

Being developed based on NXP's transponder IC, HF RFID Module SL025M is a Mifare read/write module. It supports Mifare 1K, Mifare 4K and Ultralight and is applicable for 13.56MHz. It does auto Real-time detecting tag which moves into or out of detective range and reports through one output pin's logic level.
In addition, it integrates all necessary components and antenna into one PCB. The external Micro-controller can work with SL025M to read/write Mifare cards by simple serial communication command.
Features
•Frequency: 13.56MHz
• Protocol: ISO 14443A
• Tag supported: Ultralight, Mifare Mini, Mifare 1k, Mifare 4k, FM11RF08
• Interface: UART in TTL Level
• Supply voltage: 4.4~12.0 VDC
• Dimension: 80*55 mm
