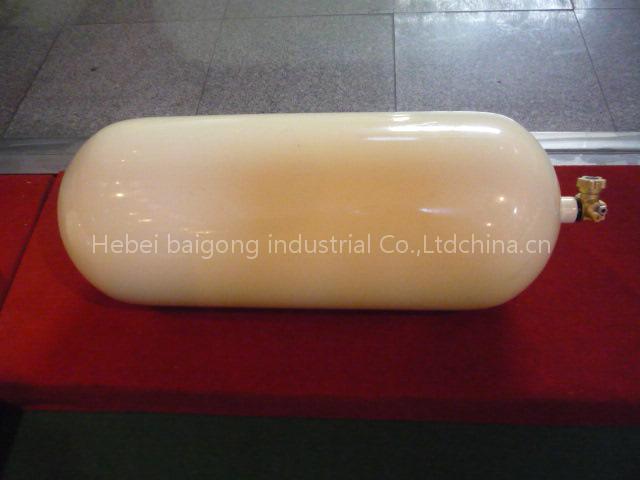

ISO11439 CNG cylinder is a Vehicles & Transportation product. Key specs — Origin: China.
Product Description
ISO11439:2000 CNG-1 cylinder specifications table
Specification and parameters of CNG steel cylinder for the on-board of compressed natural gas as a fuel for vehicles
| Type No | Outer Diameter (mm) | Water Capacity(L) | Length(mm) | Weight(kg) | Service Pressure (MPa) | Design Wall Thickness(mm) | Material |
|---|---|---|---|---|---|---|---|
| CNP20-20-232A | 232 | 20 | 660 | 25 | 20 | 5.6 | 34CrMo4 |
| CNP20-28-232A | 28 | 880 | 33 | ||||
| CNP20-34-232A | 34 | 1040 | 38 | ||||
| CNP20-40-232A | 40 | 1200 | 45 | ||||
| CNP20-57-356A | 356 | 57 | 820 | 71 | 20 | 8.2 | 34CrMo4 |
| CNP20-60-356A | 60 | 850 | 73 | ||||
| CNP20-65-356A | 65 | 910 | 77 | ||||
| CNP20-70-356A | 70 | 970 | 82 | ||||
| CNP20-75-356A | 75 | 1020 | 86 | ||||
| CNP20-77-356A | 77 | 1050 | 88 | ||||
| CNP20-80-356A | 80 | 1080 | 91 | ||||
| CNP20-90-356A | 90 | 1200 | 100 | ||||
| CNP20-100-356A | 100 | 1300 | 108 | ||||
| CNP20-113-356A | 113 | 1430 | 118 | ||||
| CNP20-145-356A | 145 | 1800 | 146 | ||||
| CNP20-160-356A | 160 | 1970 | 159 | ||||
| CNP20-100-406A | 406 | 100 | 1060 | 111 | 20 | 9.8 | 34CrMo4 |
| CNP20-110-406A | 110 | 1150 | 120 | ||||
| CNP20-120-406A | 120 | 1240 | 129 | ||||
| CNP20-130-406A | 130 | 1330 | 137 | ||||
| CNP20-140-406A | 140 | 1420 | 145 | ||||
| CNP20-145-406A | 145 | 1460 | 150 | ||||
| CNP20-198-406A | 198 | 1920 | 194 |
