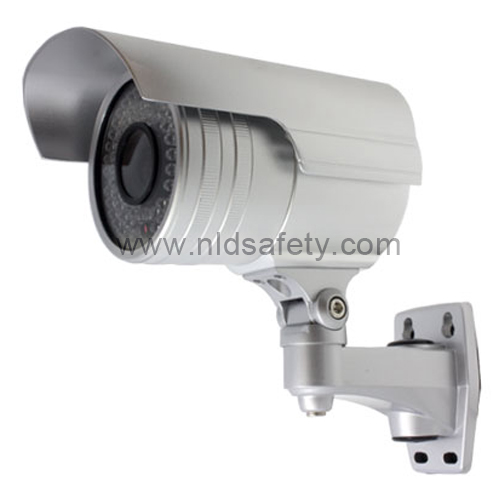

IR Zoom Camera (NLD-8224) is a Surveillance Products product. Key specs — Origin: China.
Product Description
IR zoom camera, 48 IR LEDs, IR distance is 30-35M, 0.1-0 Lux (IR on), 3.5-8 or 4-9mm vari-focal lens (Lens adjustable external), cable goes through bracket.
IR zoom camera NLD-8224: 1/3" color Sony Super HAD CCD, 540TVL; IR zoom camera NLD-8228: 1/3" color Sony Super HAD CCD, 480TVL; IR zoom camera NLD-8222: 1/3" color Sony Super HAD CCD, 420TVL; IR zoom camera NLD-8220: 1/4"color Sharp CCD, 420TVL.
| Model | NLD-8224 | NLD-8228 | NLD-8222 | NLD-8220 |
| Image Sensor | 1/3" Sony Super HAD CCD | 1/4" Sharp CCD | ||
| Signal System | PAL / NTSC | |||
| Resolution | 540TVL | 480TVL | 420TVL | 420TVL |
| Minimum Illumination | 0 Lux / F1.2 ( IR on ) | |||
| IR Range | 30 -35 M | |||
| Lens Mount | 3.5-8 or 4 -9mm | |||
| Sync System | Internal | |||
| S / N Ratio | 48dB ( AGC OFF ) | |||
| White Balance | ATW / AWC switchable | |||
| Gain Control | AGC ON / OFF switchable | |||
| Electronic Shutter | NTSC: 1/60~1/120,000sec PAL: 1/50~1/120,000sec | |||
| B.L.C. Function | ON / OFF switchable | |||
| Video Output | Composite 1.0V p-p at 75 ohm | |||
| Gamma Correction | 0.45 | |||
| Supplied Voltage | DC12V, 500mA | |||
| Operation Temperature | - 20 to + 50 degree | |||
| Operation Humidity | Within 85% RH | |||
