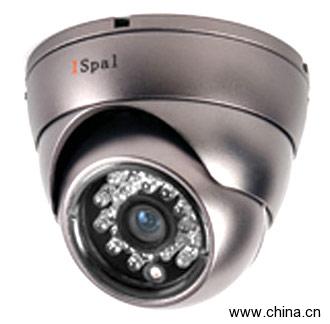

IR Waterproof Dome Camera is a Security product. Key specs — Origin: China (Mainland).
Product Description
Model No.:SF-S31536B, SF-S32036B, SF-S33036AB Product
Origin:China Brand
Name:Ispal
Price Terms:
Payment Terms:T/T
Certification:RoHS, CE Description:Technical parameters:Model no.: SF-S31536B
Power supply: DC12V Image sensor: 1/3" color Sony CCD Effective pixel: NTSC: 510(H) x 492(V)TV line: 420 TV linesIR distance: 25m Minimum illumination: 0.001 lux/LED (on)Electricity: 500mA 4.2W Scan format: interlace 2:1 Video output: 1Vp.p/75 ohm BNC White balance: auto control on or offS/N ratio:>48dB Electronic shutter: NTC: 1/60s to 1/100,000s, PAL: 1/50s to 1/10,000s Aperture control: manual GC: AGC on/off Backlight compensation: auto Working environment: -10°C to +50°C (14°F to 122°F) Model no.: SF-S32036B
Power supply: DC12VImage sensor: 1/3" color Sony CCD Effective pixel: NTSC: 510(H) x 492(V)TV Line: 420 TV linesIR distance: 30m Minimum illumination: 0.001 lux/LED (on) Electricity: 500mA 4.2W Scan format: interlace 2:1 Video output: 1Vp.p/75 ohm BNC White balance: auto control on or offS/N Ratio:>48dB Electronic shutter: NTC: 1/60s to 1/100,000s, PAL: 1/50s to 1/10,000s Aperture control: manualGC: AGC on/off Backlight compensation: auto Working environment: -10°C to +50°C (14°F to 122°F)Model no.: SF-S33036AB
Power supply: DC12VImage sensor: 1/3" color Sony CCD Effective pixel: PAL: 752(H) x 582(V), NTSC: 768(H) x 494(V)TV Line: 520 TV linesIR distance: 30m Minimum illumination: 0.001 lux/LED (on) Electricity: 500mA 4.2W Scan format: interlace 2:1 Video output: 1Vp.p/75 ohm BNC White balance: auto control on or offS/N Ratio:>48dB Electronic shutter: NTC: 1/60s to 1/100,000s, PAL: 1/50s to 1/10,000s Aperture control: manualGC: AGC on/off Backlight compensation: auto Working environment: -10°C to +50°C (14°F to 122°F)
