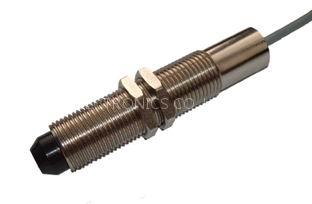

IR SENSORS

Specifications IR SENSORS Measurement Ranges: 0~300°C,20~300°C,0~500°C,−20~300°C, −50~300°C,0~800°C, IR SENSORS Resolution:Typical 0.1°C IR SENSORS Precision: −50~−20°C:±3.0°C ,−20~500°C: ±2.0% or ±2.0°C greater of reading, 500~1500°C:±3.0% of reading. IR SENSORS Repeatability: :±0.5°C or ±0.5% IR SENSORS Spectrum Response: 8~14μm IR SENSORS Distance: Spot Ratio: 3:1,5:1,8:1,10:1,12:1 IR SENSORS Operating

Temperature: 0~75°C IR SENSORS Storage

Temperature: -20~85°C IR SENSORS Relactive

Temperature: 10~90% IR SENSORS

Response Time: 100~500ms IR SENSORS Emissivity: Default 0.95(0.01~1.00 adjustable) IR SENSORS Object Distance: 0~15 m IR SENSORS Housing: Aluminum,IP65,Max Length 46mm,Max Diameter13.5mm IR SENSORS Power Supply: +5VDC,+7.5VDC,+9VDC,+12VDC,+24VDC or +18~30VDC,and the lower as +2.7VDC,+3VDC or +3.3VDC(just while OutputisSPI,orPWM,or I2Cl) IR SENSORS Analog Output:

Standard:4~20mA; Optional: 0~5 V ,10mV/°C IR SENSORS Digital Output: SPI, RS485, I2C, RS232, PWM
