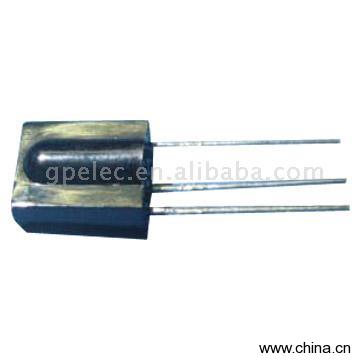

IR Receiver Module is a Semiconductors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:GP18A38AD Product Origin:China Brand Name:Guangpu Price Terms:FOB Payment Terms:T/T, L/C Certification:ISO9001, SGS Description:Features:1) ATMEL cmos-chip is adopted, strong ability of anti-static electricity2) Internal shields are adopted, strong ability of anti-electromagnetism interference 3) Enhanced immunity against many different kinds of disturbance light sources4) Lens size: 12.7 x 10.1 x 5.7mm5) Electrical optical characteristics:a) Supply voltage: 4.5 - 5.5 Vb) Supply current (mA): TYP 1.0, max.
1.4c) Receiving distance (m): min. 15, max.
30d) Wavelength of peak sensitivity: TYP 940nme) Receiving angle: i) Level exposure: L=15m: ±45°ii) Apeak exposure: L=15m: ±30°f) Work frequency: 38kHz6) Applications: a) AV equipment (TV, DVD player, VCR, audio, CD player, STB) b) Home appliances (camera, computer, air conditioner, fan, light) c) Infrared remote control toysd) Industrial control unite) CATV set top boxes f) Optical switch7) RoHs compliantInner packing:ESD bags
