Listing ID#10167058
ModelIP-CMOS-J8042
CategoryOther Safety Products
Quick answer

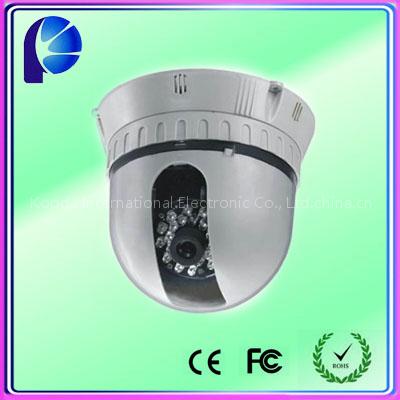

IP dome camera is a Other Safety Products product. Key specs — Brand: Kopda; Origin: CHINA.
Product Description
| Model No. | IP-CMOS-J8042 | 　 |
| CPU | Operation system | Embedded Linux OS |
| Microcomputer processor | 32Bit RSIC Embedded Processor | |
| Video | Compression format | Motion-JPEG-N |
| Signal system | CMOS300,000 pixel | |
| Frame Rate | 25fps PAL30fps NTSC | |
| resolution | VGA(640*480), QVGA(320*240) | |
| Video Adjustment | brightness, contrast, chroma, saturation. | |
| minimum illumination | 0.1 Lux/F1.2 | |
| S/N ratio | More than 48dB (AGC off) | |
| shutter speed | 1/50s(1/60s)-1/100,000s | |
| white balance, backlight balance | auto | |
| Lens | standard:6mmOptional:3.6mm,8mm | |
| Lens | standard:6mm selected:3.6mm,8mm | |
| Nightvision | nightvision | Φ5 24 LED lights,the night vision distance is 20m |
| P/T | P/T Control | Built-in RS485 P/T control |
| P/T Protocol | PELCO-D ProtocolBaud rate:9600address:1 | |
| Revolution speed | level: 15°/ SecondPerpendicularity;15°/second | |
| Revolution angle | Level direction:355°,Perpendicularity direaction:90° | |
| network | Network interface | RJ-4510/100Mbself-adaptable Ethernet slot |
| Protocol | TCP/IP,,ICMP,DHCP,FTP,SMTP,PPPoE etc. | |
| Online user number | Max direct connection users is 5,but with no restrict on observe numbers by forwarder Server. | |
| IP mode | Dynamic IP address,Static IP address,PPPOE | |
| others | shape | Ceiling hemisphere |
| use environment | indoor use | |
| Power | DC12V 1A | |
| Temperature | -10~50 °C | |
| Humidity | 95% RH | |
| Size | item size: 145mm x 133mm(D x H) | |
| packaging size: 170mm x 170mm x 170mm (LxWxH) | ||
| Weight | net:475ggross: 780g (Note: All products as per the material subjects) | |
| attachment | Adaptor, Disc(including introduction), Manual, bracket | |
| alarm | input/output | 1CH/1CH |
| Intelligent Motion detection | Motion Detection setting | |
| Alarm action | support email,message, etc. alarm | |
| System | System requirement | Microsoft Win98 SE/ME/2000/XP,Vista, Internet Explorer 5.0, NET4.5 or above |
| Features | SecuritySettings | Supports two-level password: administrator authority, user authority |
| DDNS(free) | Free DDNS bounded | |
| Superiority | P2P technology, mobile view | |
| Center management software(free) | 1,4,9,16,25,36 or 64 multiple video display optional in one screen,support record, alarm, remote playback on records and other management functions. | |
| Certification | ISO CCC FCC CE |
