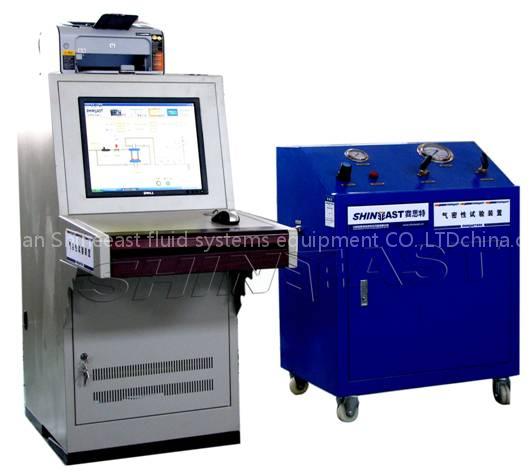

Name: IPC Controlling Gas Leak Test Machine
Brand: SHINEEAST

IPC Control Mode Gas Leak Test Machine Accurate,visualized Reliable,safe operation Max test pressure:32MPa Gas leak test machine adopts compressed air as the driven source and the air driven gas boosters as the booster system and are provided with operating pressure from 0.3 to 32Mpa.

To operate this system,the manual regulator valve has to be fitted on the machine so that it is capable for ultimate output pressure by adjusting the driving air pressure through it. The gas boosters,pressure gauages as well as all accessories will be mounted into the closed cabinet in a compact and space saving manner.

It is widely used for the leakage test for CNG vehicle high pressure hose lines There are two control modes for option: 1.Manual control mode control mode IPC control mode leak test machine Key features and advantages Compact and rugged constructure Real-time monitoring and display on LCD with test pressure value as well as test data recorded on high-speed data sampling cards and also available for pressure-time curves printing Alarming at due time when test pressure decreases to a certain value within pressure-holding period.

Industrial control configuration software are available for programming Electronic control components in this system include data sampling cards,IPC,PLC,configuration software and printer Key components ,such as gas booster,high pressure air operated valve,high pressure instruments and pipelines are from world top brands to guarantee the safety,reliability and precision of the whole system Easy installation , maintenance and reliable performance Applications Leakage test for CNG vehicle hose lines High pressure and super high pressure testing for pressure equipments in oil field industries,such as valves,pipelines,pressure vessels,wellheads,wellhead control devices,downhole tools and sealing components Test tools for research and test institutes Technical parameters Type

GBS40B-A

Air drive pressure

0.3-0.8MPa

Gas inlet pressure

0.1-1MPa

Max. gas outlet pressure

32Mpa

Max. flow(at gas inlet pressure of 8bar)

124L/min

Gas inlet connection

Φ12 PU hose quick-connection

Gas outlet connection
