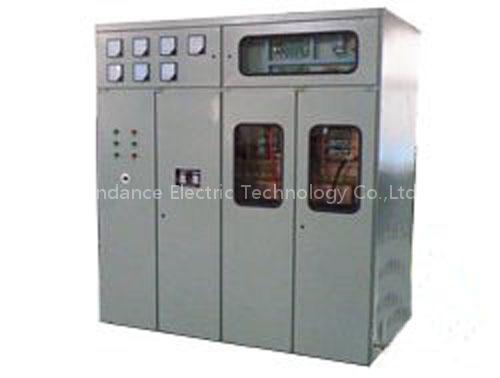

IGBT Induction Power Supply

IGBT Induction Furnace Power Supply is to adopt the international advanced new device IGBT, the series resonant induction heating power supply. It is too old-fashioned silicon-controlled frequency power supply replacement product, and it has a high efficiency energy-saving, non-high-order harmonic, small size, and complete protection , easy start, easy operation, long life, easy maintenance and low maintenance costs, And other advantages of unmatched.

Technical Parameter :

Model	Rated Capacity	Input Voltage	Transformer Capacity	Rated Power	Output Voltage	Rated Frequency	Oven Voltage	Melting Rate	Water Cooling	Melting Rate
	T	V	KVA	KW	V	KHZ	A	T/H	T/H	Minutes
IGBT-150-3/GW-0.1	0.1	380	160	150	3000	3	240	0.35	10	17
IGBT-200-3/GW-0.15	0.15	380	200	200	3000	3	320	0.43	10	21
IGBT-250-2/GW-0.35	0.35	380	250	250	3000	2	400	0.53	10	40
IGBT-400-1/GW-0.5	0.5	380	400	400	3000	1	640	0.6	10	50
IGBT-500-1/GW-0.75	0.75	380	500	500	3000	1	800	0.9	10	50
IGBT-700-0.75/GW-1	1	380	800	700	3000	0.75	1120	1.05	30	50
IGBT-1000-0.5/GW-1.5	1.5	380	1000	1000	3000	0.5	1400	1.5	30	60
IGBT-1200-0.5/GW-1.75	1.75	380/570	1250	1200	3000	0.5	1460	1.85	30	60
IGBT-1500-0.5/GW-2	2	380/570	1500	1500	3000	0.5	1600	2.1	30	60
IGBT-2000-0.2/GW-3	3	380/570	2000	2000	3000	0.2	2000	3.2	30	60
