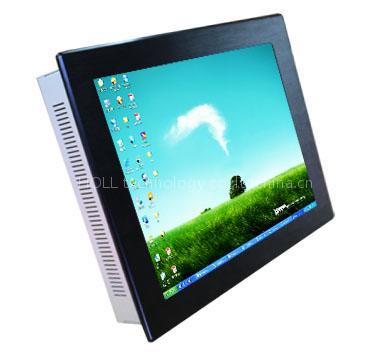

IEC-619PF industrial PC with 19 lcd panel
Listing ID#10192309
ModelIEC-619PF
CategoryConsumer Electronics

IEC-619PF industrial PC with 19 lcd panel

Specifications

Brand
Holl
Origin
China
Request Quote
Quick answer

IEC-619PF industrial PC with 19 lcd panel is a Consumer Electronics product. Key specs — Brand: Holl; Origin: China.

Product Description

Provide 19 inches industral panel PC IEC-619PF with only factory price, Holl produce many panel computers such as 8~19" LCD panel pc for inudstrial automaitons. 19" LCD Panel PC with Intel Atom N270 Processor, wifi model and touch panel is optioanl. Features

19" TFT LCD Panel support 1280x1024 pixels Intel Atom N270 1.6G,L2 512K CPU 250 cd/m2 brightness Material:Aluminium magnesium Alloy(Better than Aluminium) Resistive Touchscreen 1xPCI(CF,Wifi Optional) NEMA4/IP65 compliant front panel Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting Specifications System Motherboard IEC-815N2D Motherboard CPU Intel Atom N270 1.6G L2 512K RAM (Memory) 1G DDR2 Network 1 x Intel 82574L Gigabit Lan HDD (hard disk ) 2.5" HDD SATA160G Display Intel GMA950, Up to 224M display I/O Connector 4*RS232,1*RS232/422/485,1*VGA,1*LPT, 4*USB,1*GLAN,1*Audio Expansion 1xPCI(CF,Wifi Optional) Construction Aluminum magnesium Alloy Color Black Installation Install on desk,Hanging on the wall or VESA cantilever install Power connector 3 Pin connector Power Supply DC12V input LCD Panel Display type 19" TFT LCD Resolution 1280x1024 Luminance 250 cd/m2 Contrast Ratio 700:1 Touchscreen Type Resistive Touchscreen Controller Interface Internal USB ( RS-232 interface option) Light Transmission 81% or more Operating Force ≤250g Life Expectancy 10 Millions Environmental Specifications Oprerating Tempreture 0 °C to 60 °C Storage Humidity 5% to 40°C , on-condensing Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration Shock 10G peak acceleration (11 msec. duration) IP Leve (Front Panel) IP65 Safty FCC/VDE(Level A) MBTF >50,000 hrs Packing info Dimensions(WxHxD) 470x385x72 mm Packing Dimension 530x440x150 mm NET weight 9.5 KG Exporting packing 12v Power adapter x1, User manual x1,Warranty card x1, Packing list x1, Driver CD x1, Screws x1 bag, Touch pen x1, Clipx4 Ordering informations IEC-619P IEC-619P Chassis,19" TFT LCD, 19" Touchscreen, IEC-815N2D Board, DDR2 1G Ram, 2.5" 160G SATA HDD, power adapter, 5x COM, 1xVGA, 1x LPT, 4xUSB, 1xGLAN, 1xAudio
