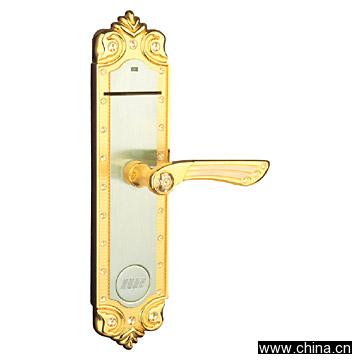

IC Card Lock

Model No.:038AK

Product Origin:China

Brand Name:HUNE

Price Terms

Payment Terms

Certification Description:Product Name: IC Card LockModel Number: 038AKPlace of Origin: ChinaFeatures:1) Wireless system and stand-alone door lock: 038AK adopts SIEMENS IC card to perform control function and unlocking function, is completely independent and stand-alone, is controlled by program resident in the lock and activated by cards which are coded by issuing computer. All of these make installation and maintenance becomes simple and easy2) Adopt SIEMENS encrypted IC card as keycard to enhance the security and reliability. 3 times of wrong decryption will lead to ultimate destruction of the card, and thus makes counterfeiting impossible3) Lock hardware is made of strong steel, to create impact resistant ability. High security lockset with a hardened steel deadbolt, an anti-pick latch and 2 pieces of anti-friction latches4) High quality electrophoretic paint is used for the alumina escutcheon and solid alumina handle5) Easy to use: The lock is operated by handles from both the inside and the outside of the door. Outside handle is fixed while in locking state; the handle can be turned only in unlocking state. The Inside handle can be turned always. When ingress, the guest insert the keycard then the lock unlocked, turn the outside handle to open the door; when egress, the guest turn the inside handle directly to open the door6) "Panic release": Deadbolt and latch are automatically retracted by inside handle for easy egress7) Superb reliability and Low running cost help to keep the running costs low8) Mechanical key: The separate emergency mechanical structure will allow the unlocking by the mechanical key in emergency9) by lock's clock, when the guest's lodging is out of the deadline, the keycard will be invalid, so the guest has to take the card to renew10) Keycards are grouped into several levels to make the access authority clear. Hotel managers can modify the authority of each card according to actual need at any moment11) Normal- open state can be set for meeting12) Avoid waiter's incautious disturb: If the guest turns out the deadbolt inside the room, when insert keycard (except Master Card) the LED will flash in red and green alternately to remind the waiter that someone is inside the room13) Report the loss of keycard: Even if your keycard is lost, you can keep quiet, the lost keycard can be invalidated by simple card operations on the lock14) The lock memorizes the latest more than 200 access records to be checked for case, guarantee the security management15) The elegant printed card help accent the distinction of the hotel16) User-friendly and Compatible software: Specially utilize a WINDOWS software platform to design the management software make use easy. Offers software interfaces (DLL) to make the lock management software can be connected to other hotel management system17) Multi-purpose card can be developed from the keycard, to support lock system, power system, safe, lift, and hotel consumption systemPerformance index:1) Applicable card: Siemens IC card2) Power supply: 4 x AAA alkaline batteries3) Battery life: about 18 months in normal state4) Low voltage warning: When power's voltage is less 4.5V, there will be warning when unlock.5) Static consumption: 3μA, dynamic consumption: 180mA6) Panel (escutcheon) size: 268mm (H) x 71mm (W) x 11mm (thickness)7) Mortise size: 219mm (H) x 105mm (W) x 20mm (Thickness)
