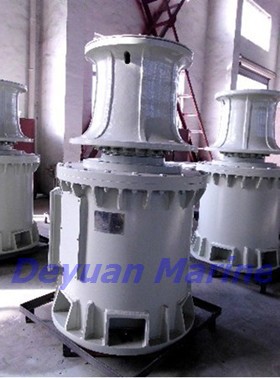

Hydraulic capstan

We, ,can provide different types of electric warping hawser capstan and electric or hydraulic mooring capstan.Pls feel free to contact us for more details.

name Chain Dia.

(mm) Working load(kn) Working speed(m/min) Warping speed(m/min) Wire dia

(mm) Electric

(KW) Hydraulic

(kw)

#934;12.5/14Electric（hydraulic) anchor and rope capstan 12.5/14 5.9/7.4 ≥12 5 Φ11 3/1.2 4

#934;16/17.5Electric（hydraulic) anchor and rope capstan 16/17.5 10.9/13.0 ≥12 8 Φ13 4.3/1.7 7.5

#934;19/22Electric（hydraulic) anchor and rope capstan 19/22 15.3/20.6 ≥12 10 Φ13 6/2.5 11

#934;24/26Electric（hydraulic) anchor and rope capstan 24/26 24.5/28.7 ≥12 20 Φ15 7.5/7.5/5 11

#934;28Electric（hydraulic) anchor and rope capstan 28 33.3 ≥12 30 Φ17.5 11/11/7.5 15

#934;30/32

Electric（hydraulic) anchor and rope capstan 30/32 38.3/43.5 ≥12 30 Φ17.5 16/16/11 15

#934;34/36

Electric（hydraulic) anchor and rope capstan 34/36 49.1/55.1 ≥12 30 Φ17.5 16/16/11 18.5

#934;38/40

Electric（hydraulic) anchor and rope capstan

38/40 61.4/68 ≥12 50 Φ20.5 22/22/16 30

#934;42/44

Electric（hydraulic) anchor and rope capstan 42/44 75/82.3 ≥12 50 Φ20.5 22/22/16 30
