Name: Hydraulic Yard Ramp
Brand: ligao
SKU: DCQ-5 6 8 10 12 15t

Model	Mobile capacity	Adjusting range	Table size	Total dimension	Lifting style
DCQ-5	5t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-6	6t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-8	8t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-10	10t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-12	12t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-15	15t	+300-250mm	2000×2000mm	2000×2000×600mm	electrical operation
DCQ-5	5t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation
DCQ-6	6t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation
DCQ-8	8t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation
DCQ-10	10t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation
DCQ-12	12t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation
DCQ-15	15t	+400-300mm	2500×2000mm	2500×2000×600mm	electrical operation

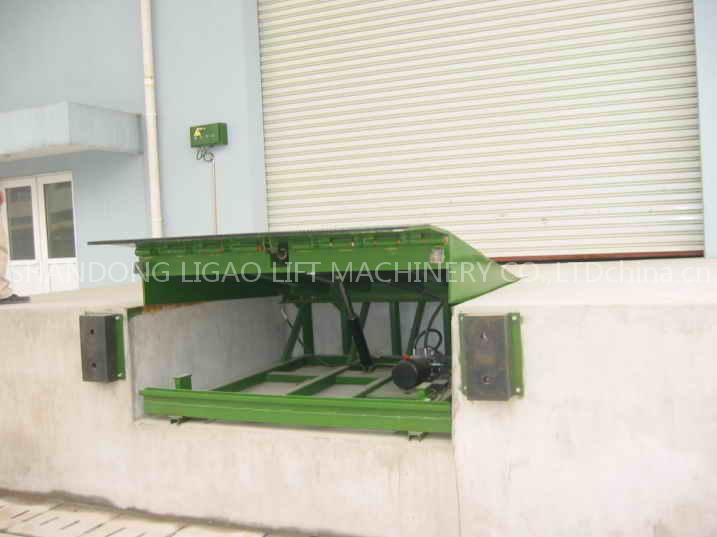

The stationary hydraulic yard ramp is also called the stationary dock leveler, which is used in logistics and warehouse work as accessory equipment. The yard ramp can be fixed to the incline of the platform, and it can adjust the height to the cargo trucks. This equipment can save labor hours and promote efficiency, safety, and convenience. The stationary yard ramp is operated easily with electricity and hydraulic power. It is classified into five catagories by weight carrying capacity, such as 6T, 8T, 10T, 12T, 15T etc.

Hydraulic Yard Ramp

Specifications
