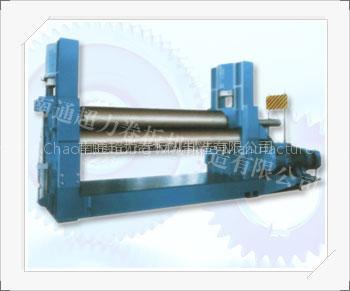

Hydraulic Three Roller Symmetry Bending Machine

The structure type of the machine is three roller symmetry, up roller moves vertically through bevel gear drive at middle symmetrical position of two down rollers, and moves whirlly by meshing of two down rollers through the end gear of main reducers, provides torque for bending plank stuff. Neat plastic metal board gets by three work rollers of lapping machine
(two down rollers, one up roller), by means of underdraughting of up roller and rotating move of down roller, to make metal board experience many times of continuously bending, to yield permanent plastic deformation, and to bend into desired cylinder, conic tube or parts of them. The fault of the machine
is that the end part of plank stuff should be prebended by means of other equipment. The machine is applicable to large scale bending machine which bending board thickness is up to 50 mm, adds a row of fixed carrier rollers at the down part of the two down rollers, to cut down the distance of the two down rollers, so as to increase bending workpiece precision and whole function of the machine.

Technical Parameter:

Specification Type	Largest Thickness (mm)	Largest Width (mm)	Yielding Limitation (MPa)	Bending Board Speed(m/min)	Fully Loaded Smallest Diameter(mm)	Upper Roller Diameter(mm)	Down Roller Diameter(mm)	Down Roller Center Distance (mm)	Main Electromotor Power (kw)	Hydraulic Electromotor Power (kw)
W11-30×2000	30	2000	245	4	1200	360	290	480	22	7.5
W11-25×2500	25	2500	245	4	1200	370	300	480	22	7.5
W11-30×2500	30	2500	245	4	1200	420	360	550	30	11
W11-25×3000	25	3000	245	4	1200	430	370	550	30	11
W11-30×3000	30	3000	245	4	1200	450	390	600	30	11
W11-40×2500	40	2500	245	3.5	1400	500	400	600	37	15
W11-40×3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11-50×3000	50	3000	245	3.5	2000	580	480	750	55	22
W11-60×3000	60	3000	245	3.5	2400	660	560	800	75	30
W11-70×3000	70	3000	245	3.5	2800	710	620	850	90	37
W11-80×3000	80	3000	245	3.5	3200	770	680	900	90	37
W11-90×3000	90	3000	245	3.5	3600	820	730	950	110	45
W11-100×3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11-110×3000	110	3000	245	3.5	4400	900	810	1080	132	55
W11-120×3000	120	3000	245	3.5	4800	950	860	1160	132	55
