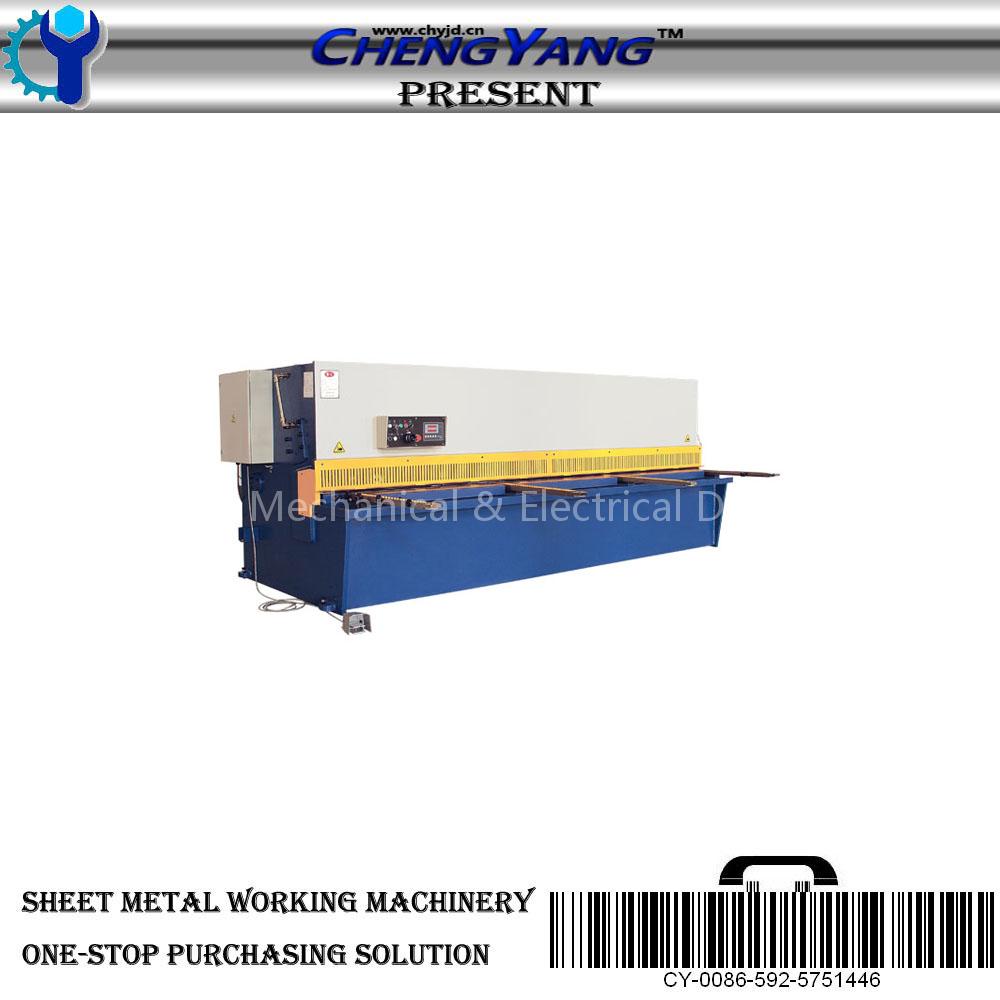

Hydraulic Sheet Shearing Machine
Listing ID#10210377
ModelQC12Y
CategoryMetal & Metallurgy Machinery
Metal & Metallurgy Machinery

Hydraulic Sheet Shearing Machine

Specifications

Origin
Xiamen , Fujian, China
Request Quote
Quick answer

Hydraulic Sheet Shearing Machine is a Metal & Metallurgy Machinery product. Key specs — Origin: Xiamen , Fujian, China.

Product Description

Main features:

1: Holistic welding structure treated by annealing.

2: The top rest moves downward under the pressure of the cylinder and it returns with the nitrogen cylinder's help

3: Manual adjustable blade clearance

4: Limit switch and timers controls the back gauge forward and backward movement by the motor, and achieve cutting distance.

5: All major electrical and hydraulic elements are assembled with high grade internation brands

6: An light alignment device mades shearing much easier and more efficient.

Main Part:

Blade clearance adjusting device

Hold down cylinder

Germany REXROTH or domestically famous hydraulic valve

Technical Parameter:

Specification Max. Shearing
Thickness
 Max. Shearing
Width
 Distance
Bbetween Uprights
 Strokes Back
gauge Stroke
 Shearing Angle Working
Table Height
 Throat Depth Main Power Oil
volume
(mm) (mm) (mm) (mm) (mm) (°) (mm) (mm) (KW) (L)
QC12Y-4*2500 4 2500 2710 25 600 1.5 800 100 7.5 240
QC12Y-4*3200 4 3200 3410 20 600 1.5 800 100 7.5 290
QC12Y-4*6000 4 6000 6190 10 800 1.5 850 100 11 290
QC12Y-6*2500 6 2500 2720 20 600 1.5 800 100 7.5 240
QC12Y-6*3200 6 3200 3420 18 600 1.5 800 100 7.5 290
QC12Y-6*4000 6 4000 4220 15 600 1.5 800 100 7.5 380
QC12Y-6*5000 6 5000 5620 12 800 1.5 850 100 11 380
QC12Y-6*6000 6 6000 6230 10 800 1.5 850 100 11 380
QC12Y-8*2500 8 2500 2760 14 600 1.5 800 100 11 240
QC12Y-8*3200 8 3200 3460 12 600 1.5 800 100 11 380
QC12Y-8*4000 8 4000 4260 10 600 1.5 800 100 11 380
QC12Y-8*5000 8 5000 5255 8 800 1.5 850 100 11 380
QC12Y-8*6000 8 6000 6225 6 800 1.5 850 100 11 380
