Listing ID#10096484
ModelFS-H-1200
CategoryOther Plastic & Rubber Machinery

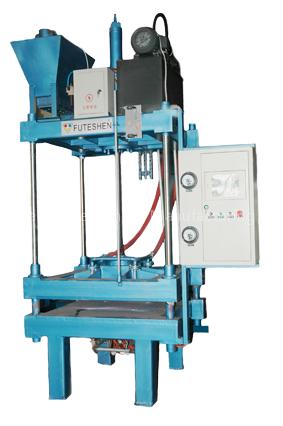

Hydraulic Semi-Automatic Forming EPS Machinery
Specifications
- Brand
- FUTESHEN
- Origin
- Hangzhou,China.
- Price Term
- FOB
Quick answer
Hydraulic Semi-Automatic Forming EPS Machinery is a Other Plastic & Rubber Machinery product. Key specs — Brand: FUTESHEN; Origin: Hangzhou,China.; Price Term: FOB.
Product Description
| Technical data: | ||||||
| Item | FTS1000 | FTS1200 | FTS1400 | FTS1800 | ||
| Mould Dimension | 1000*800(mm) | 1200*1000(mm) | 1400*1200(mm) | 1800*1400(mm) | ||
| Max Product Dimension | 800*600*350(mm) | 1060*810*350(mm) | 1200*1030*350(mm) | 1560*1360*350(mm) | ||
| Stroke | 150-1000(mm) | 150-1000(mm) | 150-1000(mm) | 150-1000(mm) | ||
| Steam | Entry | 25.4(mm) | 25.4(mm) | 25.4(mm) | 25.4(mm) | |
| Consumption | 5kg/cycle | 5kg/cycle | 6kg/cycle | 6.5kg/cycle | ||
| Cooling Wster | Entry | 25.4(mm) | 25.4(mm) | 50.8(mm) | 50.8(mm) | |
| Consumption | 16kg/cycle | 16kg/cycle | 25kg/cycle | 25kg/cycle | ||
| Compressed Air | Entry | 25.4(mm) | 25.4(mm) | 31.75(mm) | 31.75(mm) | |
| Consumption | 1m3/cycle | 1.5m3/cycle | 2m3/cycle | 2.5m3/cycle | ||
| Cycle Time | 120-150s | 130-170s | 150-200s | 180-250s | ||
| Connected Load | 4.37KW | 5.87KW | 5.87KW | 7.87KW | ||
| Machine Weight | 2000kg | 2600kg | 3400kg | 4500kg | ||
