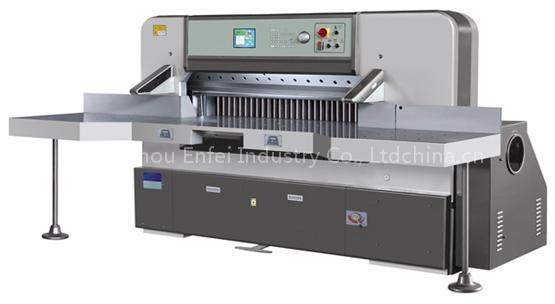

Hydraulic Programmed Paper Cutting Machine

Hydraulic Programmed Paper Cutting Machine

Model

780HP

920HP

1150HP

The Code Of Way Of Transmission

M

M

M

Cutting Width (mm):

780

920

1150

Cutting length (mm):

780

920

1150

Cutting height (mm):

120

120

160

Front table length (mm)

610

610

700

Front table Height (mm)

930

930

930

Power consumption of Main Motor (kw)

3

3

5.5

Max Clamping Pressure ( dan)

3000

3500

3500

Cutting speed (times/min):

42

42

42

Net Weight (kg):

2100

2300

3800

Gross Weight (kg)

2300

2500

4000

Overall Dimensions L × W × H (m)

2×2.1×1.5

2.3×2.3×1.5

2.5×2.7×1.6

Packing size L × W × H (m)

2.4×1.5×1.7

2.4×1.42×1.7

2.65×1.42×1.9

Characteristics

1. High quality casting part made by resin bonded sand way.

2. Four optional computer system.(high capacity of program, precise position resolution, strong malfunction diagnose and disoperation preserve function)

3. Chrome-plated slot-less working table installed with double imported linear guide and air cushion.

4. Mechanical assistance device for knife replacement

5. Overload protection safety device

6. Infrared photoelectric protection device

7. Fluorescent lamp and cutting line indicator

8. Ejective device

9. Use imported components in Hydraulic system like Atos and Hassan

10. Use imported electronic units like SIEMENS, TOSHIBA, ORMON, and LG

11. PLC control

12. Use imported Mechanic components like NSK Bearing

13. Imported Motor and motor made in china is optional

14. Single Hydraulic and Double Hydraulic is optional
