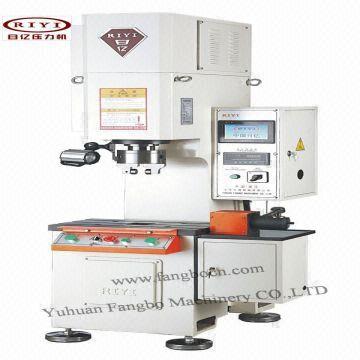

Hydraulic Press Riveting special

1. The C-body design, overall casting make the machine high rigid.

2. Professional design, suitable for various parts of the flange riveting, such as ball, silicone oil clutch. etc.

3. Frequency power head,adjusting speed arbitrary, wide speed range.

4. Safety designed, hand operation, with emergency stop button and jog up and down function.

5. Adopts PLC and touch screen, easy to operate.

6. Downward movement with the fast and Feeding speed，the fast forward improve work efficiency；feeding speeds can be adjusted to protect the mold, improve product quality.

7.Equipped with a torque detection device to facilitate the detection of spin riveting quality (Ball special purpose machine).

8.Key and Foot Switch two cycle start modes.

Technical Parameters

Theoretical output pressure 50KN(5t)

Rated oil pressure 13Mpa

Max stroke 150mm

Max Opening Height 300mm

Throat Depth 200mm

Fast-forward speed 115mm/s

Feeding speed 10~80mm/s

Return speed 90mm/s

The size of the working table 520 X 310mm

The height of the working table 700mm

Sprin riveting motor power 2.2Kw

Sprindle motor speed 1000rpm

Power of motor 2.2kw

Power(3ΦAC,50Hz)380V

Weight 1400kg

Defferent capacity of the machine ,the special request of the stroke,the working table are also pavailable.

We can also design the specail hydraulic press machine,hydraulic riveting machine,pneumatic machine for your actual needs.

Welcome to contact me at anytime.
