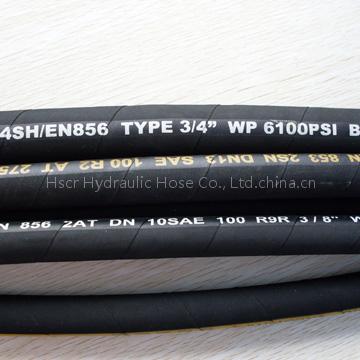

Hydraulic Hose DIN EN 853 2SN
Specifications
- Brand
- Chengrui
- Origin
- Hebei
- Price Term
- FOB
Quick answer
Hydraulic Hose DIN EN 853 2SN is a Rubber Products product. Key specs — Brand: Chengrui; Origin: Hebei; Price Term: FOB.
Product Description
| Hydraulic Hose DIN EN 853 2SN Tube: Oil resistant synthetic rubber | |||||||||
| Reinforcement: Two high tensile steel wire layers (2W) | |||||||||
| Cover: Abrasion and weather resistant synthetic rubber | |||||||||
| Working Temperature: -40℃ to +100℃ | |||||||||
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimun Bend Radius | |||
| inch | mm | mm | mm | Mpa | psi | Mpa | psi | mm | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 16 | 23720 | 89 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 |
| 16 | 5/8 | 15.9 | 23.0 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 |
| 19 | 3/4 | 19.0 | 27.0 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 |
