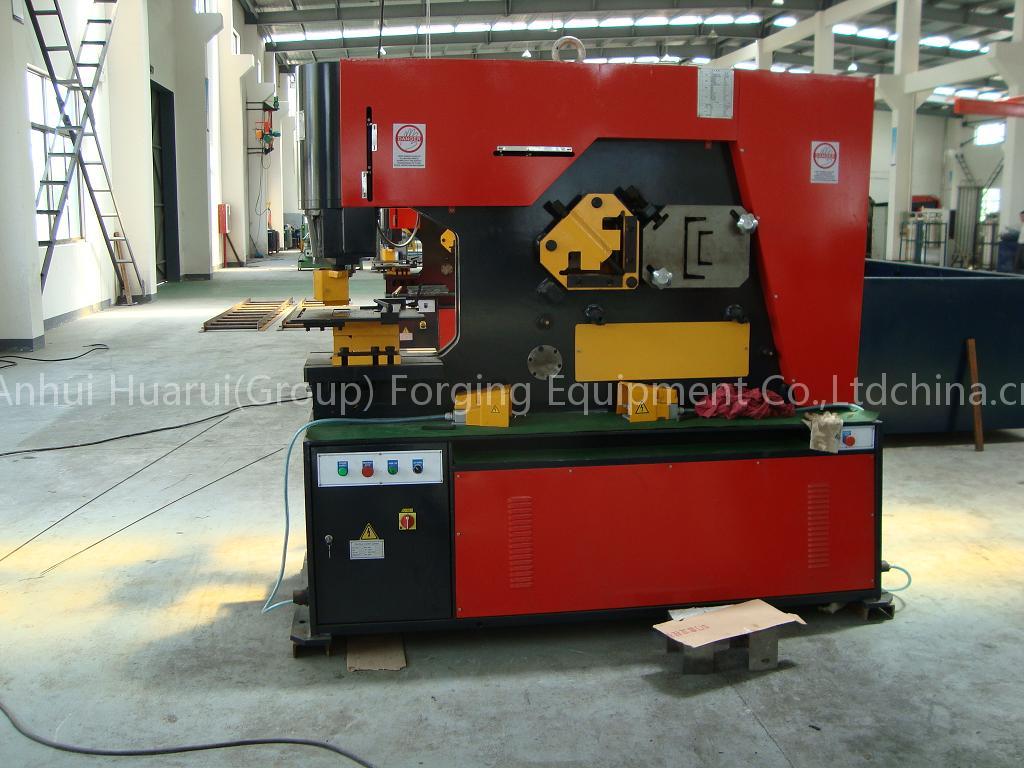

Hydraulic Combined Punching & Shearing Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: gutai; Origin: China (Mainland); Price Term: FOB.
Product Description
They adopt hydraulic driving system and they are the latest iron workers in our country,Various metal plate,squarebar,Round bar,angle,channel and joist can be cut,punched and notched on the is also equipped with a stop device for cutting.
â—†Technical Data:
Model
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
Pressure(Ton)
55
75
110
140
Max.cutting thickness(mm)
16
20
25
30
Plate strength(N/mm2)
≤450
≤450
≤450
≤450
Cutting angle(degree)
7°
8°
8°
8°
Sheraing size of one stroke(mm)
16*250 8*400
20*330 10*480
25*330 16*600
30*355 20*600
Ram stroks(mm)
80
80
80
80
Number of strokes(cpm)
8
8
6
6
Throat depth(mm)
300
355
400
600
Punching thickness(mm)
16
20
25
26
Max.Punching diameter(mm)
25
30
35
38
Power of main motor(kw)
4
5.5
7.5
11
Overall dimensions(L*W*H)mm
1640*730*1770
1640*800*1900
2355*960*2090
2680*1040*2300
Weight of machine(kg)
1600
2000
4800
6800
â—†A Special order for the joist and channel moulds needed.
