Listing ID#10110811
ModelWXM-60/70
CategoryHydraulic Tools

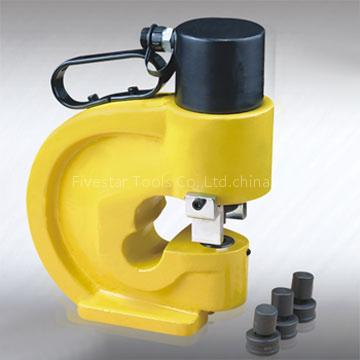

Hydraulic Busbar Punching Tools
Specifications
- Brand
- Fivestar Tools
- Origin
- China (Mainland)
Quick answer
Hydraulic Busbar Punching Tools is a Hydraulic Tools product. Key specs — Brand: Fivestar Tools; Origin: China (Mainland).
Product Description
1. Suitable for punching holes on L and H shape iron plates, copper &aluminum busbars.
2. Flat pedestal to provide steadiness in operation.
3. Punch dies made of high carbon tungsten steel and not easy to wear off.
| Model | Tonnage(T) | Aperture (in) | Max.thickness(mm) | Throat th (mm) | Weight(Kg) | Volume (cm) | |
| lron sheet | copper busbar | ||||||
| WXM-60 | 31 | Φ3/8-Φ3/4 | 6mm | 10mm | 95 | 21.5 | 40×25×15 |
| WXM-70 | 35 | Φ3/8-Φ3/4 | 8mm | 12mm | 110 | 37.5 | 33×20×39 |
