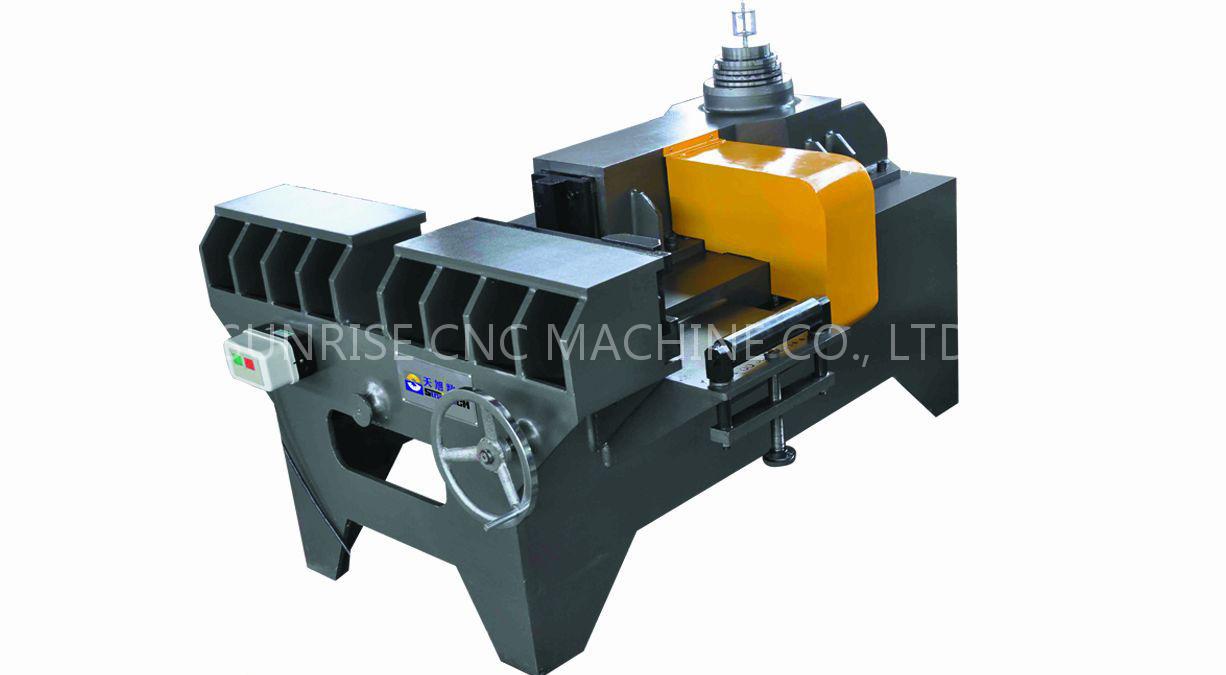

Name: Hydraulic Angle Straightening Machine
Brand: Sunrise
SKU: TXZ20

Applicable industry:

Mainly used in all kinds of section steels, for example, angle steel, channel steel, I-steel, H section, square steel, round steel, steel pipe and axis class to straight or bend, widely used in electric, bridge, construction machine, iron tower, sheet metal and maintain etc. it also can be used for horizontal pressure machine.

Product feature:

1.The fuselage of section straightening machine is the C steel welding structure, has the rigidity well, the supporting capacity big, ease of operation merits and so on.

2.Transmission styles include hydraulic transmission and engine transmission, users can choose them freely.

3.Operation location divided into the single location and the double location, each location all has the alone disposition seal width adjusting device and in the table bracket installment, the operation is more flexible, accurate and safe.

attach the auxiliary unit according to the customers’ requirements, for example, the roller conveyor.

Product Basic Parameter:

Model		TXZ20
Max size of work piece(mm)	Angles	L40x40x3 ~ L200Ñ…200Ñ…20 (Especially zinc coated angles)
	Round steel	Below Φ150
	Channel steel	Below [260
	Band steel	Below 260
	Square steel	Below â–¡150
Max. straightening force (kN)		1000
Working stroke of slider(mm)		20
Times of stroke(min-1)		25
Max. close width (mm)		220
Adjustable stroke(mm)		100
Slider center to machine(mm)		135
Center distance of slider max bearing (mm)		800
Center height of slider (mm)		200
Quantity of station		1
Power of motor(kW)		7.5
Overall dimension L× W×H (mm)		2450x1680x1440
Weight of machine (kg)		≈3000
