Hyadraulic Plane Scissoring Machine
Listing ID#10110041
ModelXCLP2-250/300
CategoryCar Mirrors

Hyadraulic Plane Scissoring Machine

Specifications

Brand
Chengen
Origin
China (Mainland)
Request Quote
Quick answer

Hyadraulic Plane Scissoring Machine is a Car Mirrors product. Key specs — Brand: Chengen; Origin: China (Mainland).

Product Description

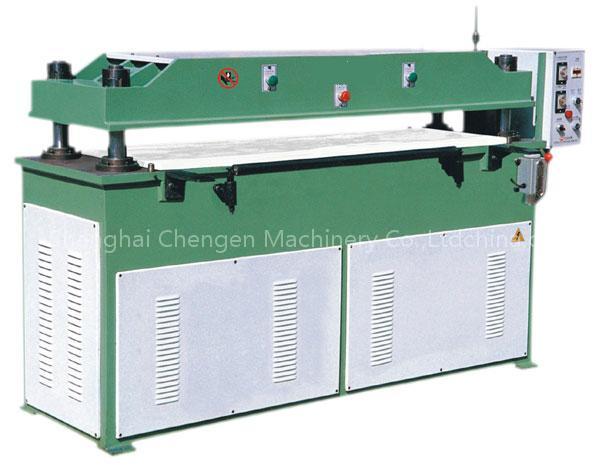

XCLP2-250/300 4-PILLAR Hyadraulic Plane Scissoring Machine
The machine is mainly suitable for cutting one layer or layers of leather, rubber,plastic, plastics packing, textile and chemical fibre etc. With molding cutter.
1The operation is labor-saving and simple, with low malfunction, strong cutting power and high cutting speed.
2Double oil cylinder and precise four-column automatic balance connecting rod structure, which can guarantee the absolutely same cutting depth of each cutting position.
3When pressing the cutting board and touching the cutter, it can cut automatically and slowly to make that no size error between the uppermost layer and lowermost layer of the cutting material.
4Operation with two hands makes high safety

Maximum momentum300KN350KN/400KN
Seissor speed0.12m/s0.11m/s
Stroke adjustment0120mm
Range between the working tables60160mm
Size of the upper pressing board1600×500mm1600×600mm
Size of the pressing board1600×510mm1600×610mm
Motor power2.2KW3KW
Overall dimension2210×1150×1320mm2210×1250×1320mm
Total weight1800kg2000kg
