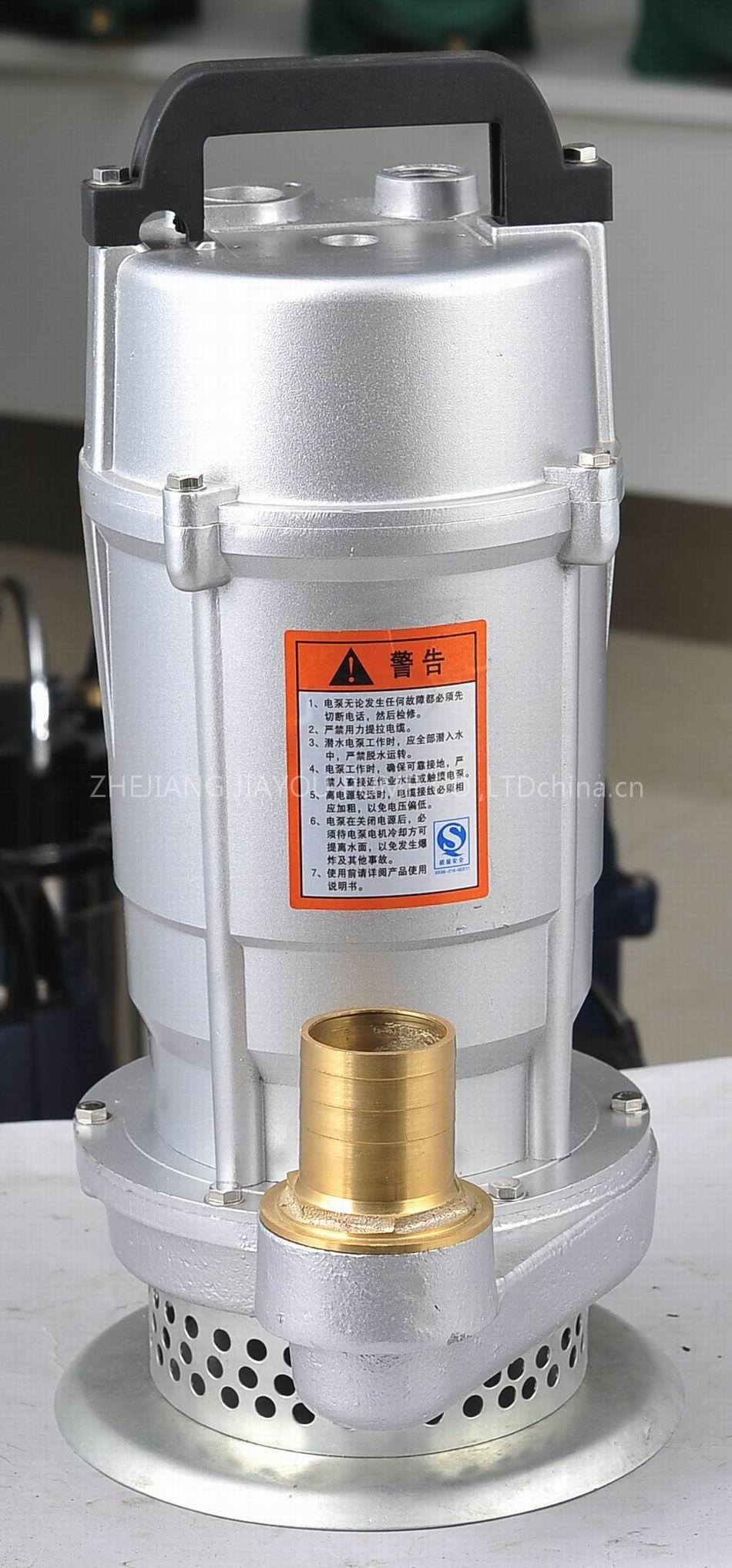

House Pump QDX10-16

1.100% copper wire submersible pump
2. Aluminum pump body
3.10m cable
4. With float switch
5. With thermal protection

Application and Installation
Home pumps are recommended for pumping clean water without abrasive particles and liquids that
Are chemically non-aggressive to the materials of which the pump is made. Mainly used for well pumping
River pumping, farm irrigation, water supply, drainage in breeding industry.
nbsp

Model	Rated flow(m³/h)	Max.head(m)	pipe size(mm)	Power(kw)	Speed(r/min)	Voltage(V)	Size(inch)
QDX1.5-17-0.37	1.5	17	25	0.37	2850	220	1
QDX1.5-25-0.55	1.5	25	25	0.55			1
QDX3-20-0.55	3	20	40	0.55			1.5
QDX10-10-0.55	10	10	50	0.55			2
QDX1.5-32-0.75	1.5	32	25	0.75			1
QDX7-18-0.75	7	18	40	0.75			1.5
QDX10-15-0.75	10	15	50	0.75			2
QDX10-18-1.1	10	18	50	1.1			2

We can supply many kinds of home pump, if you need please contact us.
