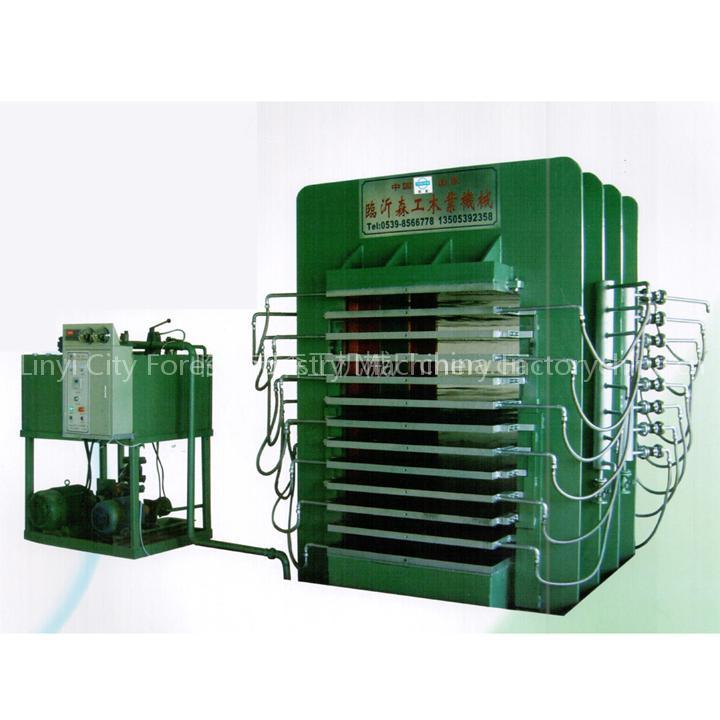

Hot press

Type

Nominal total pressure

working layers

pressing plate mm

Plate spacing mm

fuel tank quantity and diameter

SG44R-30

3000kN

3-20

2700*1370*42  2700*1370*52

70-100

ï¿ 280mm*2

SG44R-35

3500kN

3-20

2700*1370*42  2700*1370*52

70-100

ï¿ 300mm*2

SG44R-40

4000kN

5-20

2700*1370*42  2700*1370*52

70-100

ï¿ 320mm*2

SG44R-50

5000kN

5-20

2700*1370*42  2700*1370*52

70-100

ï¿ 360mm*2

SG44R-60

6000kN

5-20

2700*1370*42  2700*1370*52

70-100

ï¿ 400mm*2
