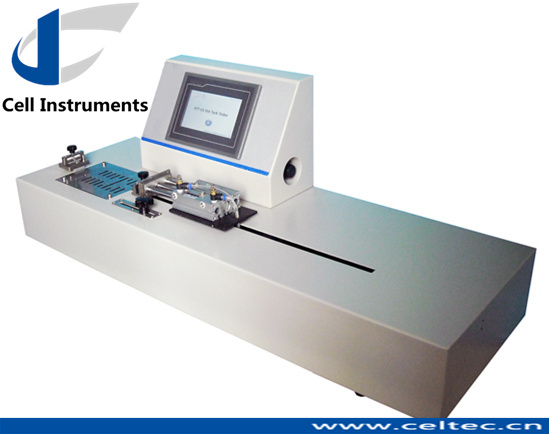

Hot Tack and Seal Tester
Specifications
- Brand
- Cell
- Origin
- China
- MOQ
- 1
- Packaging
- plywood
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
Hot Tack and Seal Tester is a Packaging Machines product. Key specs — Brand: Cell; Origin: China; MOQ: 1; Packaging: plywood.
Product Description
1. Hot tack, heat seal, peeling and tensile test items are integrated in one instrument 2. Sealing jaws are controlled by P.I.D. temperature. Temperature rises fast to set temp and keeps stable 3. 7 inch TFT touching screen for easy operation 4. PLC control 5. Aluminum encapsulated sealing jaws for average heating 6. Multi-group parameter saving 7.
Any testing speed adjustable 8. Auto zeroing, overload and over travel protection 9. Manual and foot switch starting test, anti-scald design 10. RS 232 port and professional software
1. Hot tack, heat seal, peeling and tensile test items are integrated in one instrument 2. Sealing jaws are controlled by P.I.D. temperature. Temperature rises fast to set temp and keeps stable 3. 7 inch TFT touching screen for easy operation 4. PLC control 5. Aluminum encapsulated sealing jaws for average heating 6. Multi-group parameter saving 7.
Any testing speed adjustable 8. Auto zeroing, overload and over travel protection 9. Manual and foot switch starting test, anti-scald design 10.
RS 232 port and professional software Hot Tack Tester Technical Specifications Items Parameters Sealing Temperature Ambient~250℃ Temp Accuracy ±0.2℃ Heat Seal Dwell Time 0.1~9999s Hot Tack Dwell Time 0.1~9999s Sealing Pressure 0.15MPa~0.7MPa Sealing Jaws 50mmx10mm Teflon Coated Sealing Jaws Heating Double Heating Load Cell 200N(Optional:30N50N100N500N) Accuracy 0.5 F.S.
Resolution 0.01N Stroke 500mm Gas Source 0.5MPa~0.7MPa Port Size Ф6mm PU Hose Dimensions 1100mm(L)×390mm(W)×420(H) Power AC220V50Hz Hot Tack Tester Standards ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003 Technical Specifications Items Parameters Sealing Temperature Ambient~250℃ Temp Accuracy ±0.2℃ Heat Seal Dwell Time 0.1~9999s Hot Tack Dwell Time 0.1~9999s Sealing Pressure 0.15MPa~0.7MPa Sealing Jaws 50mmx10mm Teflon Coated Sealing Jaws Heating Double Heating Load Cell 200N(Optional:30N50N100N500N) Accuracy 0.5 F.S.
Resolution 0.01N Stroke 500mm Gas Source 0.5MPa~0.7MPa Port Size Ф6mm PU Hose Dimensions 1100mm(L)×390mm(W)×420(H) Power AC220V50Hz
Standards ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003
