Hot Tack Tester
Specifications
- Origin
- China
- Packaging
- plywood
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C
Hot Tack Tester is a Packaging Machines product. Key specs — Origin: China; Packaging: plywood; Price Term: EXW/EX-Work,FOB; Payment Term: T/T,L/C.
Product Description

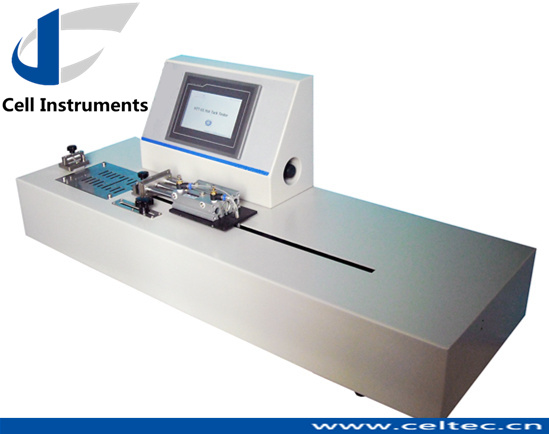

Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. Hot Tack tester is especially important for vertical form-fill-seal packaging. Hot Tack Tester Features 1.
Hot tack, heat seal, peeling and tensile test items are integrated in one instrument 2. Sealing jaws are controlled by P.I.D. temperature. Temperature rises fast to set temp and keeps stable 3. 7 inch TFT touching screen for easy operation 4. PLC control 5. Aluminum encapsulated sealing jaws for average heating 6. Multi-group parameter saving 7.
Any testing speed adjustable 8. Auto zeroing, overload and over travel protection 9. Manual and foot switch starting test, anti-scald design 10.
RS 232 port and professional software Hot Tack Tester Technical Specifications Items Parameters Sealing Temperature Ambient～250℃ Temp Accuracy ±0.2℃ Heat Seal Dwell Time 0.1~9999s Hot Tack Dwell Time 0.1~9999s Sealing Pressure 0.15MPa～0.7MPa Sealing Jaws 50mmx10mm Teflon Coated Sealing Jaws Heating Double Heating Load Cell 200N Optional:30N50N100N500N） Accuracy 0.5 F.S.
Resolution 0.01N Stroke 500mm Gas Source 0.5MPa～0.7MPa Port Size Ф6mm PU Hose Dimensions 1100mm(L)×390mm(W)×420(H)
Hot Tack Tester Standards ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003
