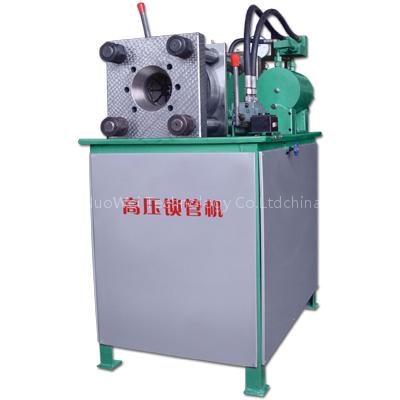

Hose crimping machineDSG-102 is a Business Services product. Key specs — Origin: China.
Product Description
The machine is an enhanced type of a high pressure locking tube machine in model 102, which is the special equipment for pressing the tube end of a high pressure rubber tube with a outer cover and a core together for the production or repair a hydraulic support.
2. The composition and the main technical characters
The machine is composed of a locking & pressing mechanism, a motor, a gear pump, a control valve and an oil tank.
The locking & pressing force:740T
The motor model:Y132M-4
The power:7.5KW
The rotation speed:1440r/min
The gear pump model:CBF-E540-ALPL
The relief valve model:YF-L20H3-S
The reversal valve model:34SM-L20H-W
The oil tank capacity:100kg
The equipment size(L×W×H):2000×850×1500
The weight:1200kg
