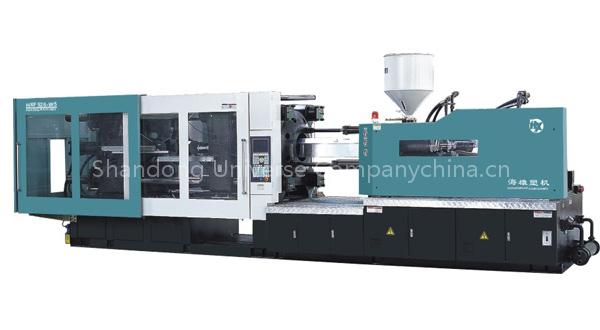

Horziontal Injection Machine
Specifications
- Origin
- China
- Price Term
- FOB
Horziontal Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
TYF-366 Injection Unit A B CScrew Diameter mm 65 70 75Screw L/D Ratio L/D 22.6 21 19.6Injection Capacity Theory cm3 995 1155 1325Injection Weight g 926 1074 1232Injection Pressure Mpa 182 157 137Injection Rate g/s 245 284 326Platicizing Capacity g/s 33 41 49Screw Speed rpm 136 Clamping Unit Clamping Force Kn 3660 Moving mould-plate stroke mm 660 Max.mould height mm 750 Min. mould height mm 250 Space between tie-bars mm 670x670 Hydraulic Ejector Force Kn 70 Hydraulic Ejector Stroke mm 160 Ejector Number n 13 Other Pump Prssure Mpa 16 Motor Power Kw 30 Heating Capacity Kw 19.93 Machine Dimension m 7.21x1.82x2.24 Machine Weight t 12
