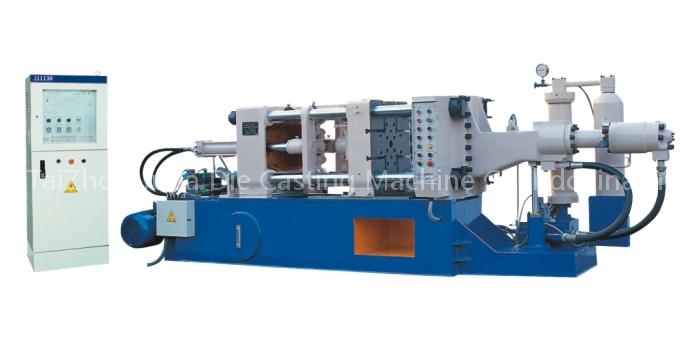

Horizontal Cold Chamber Die-Casting Machines (J1113H)

Die locking force (kn): 1400 Size of moving platen(mm): 650x650 Die meter of tie bar (mm): 80 Inner space between the bars(hv) (mm): 420x420 Die thickness(min-max) (mm): 250-500 Die stroke (mm): 350 Ejection stroke (mm): 80 Ejection orce (kn): 100 Injection force (min-max) (kn): 102-200 Diameter of shot shot sleeve (mm): 40, 50, 60 Eceentric position of shot sleeve (mm): 0-120 Dosage of fluid metal per shot(al) (kg): 1.6 Projecting area of casting(min-max) (cm2): 108-409 Injecting pressure(min-max) (mpa): 33-125 Injecting stroke (mm): 320 Injecting speed (m/s): 6 Pressure build up time (ms)
