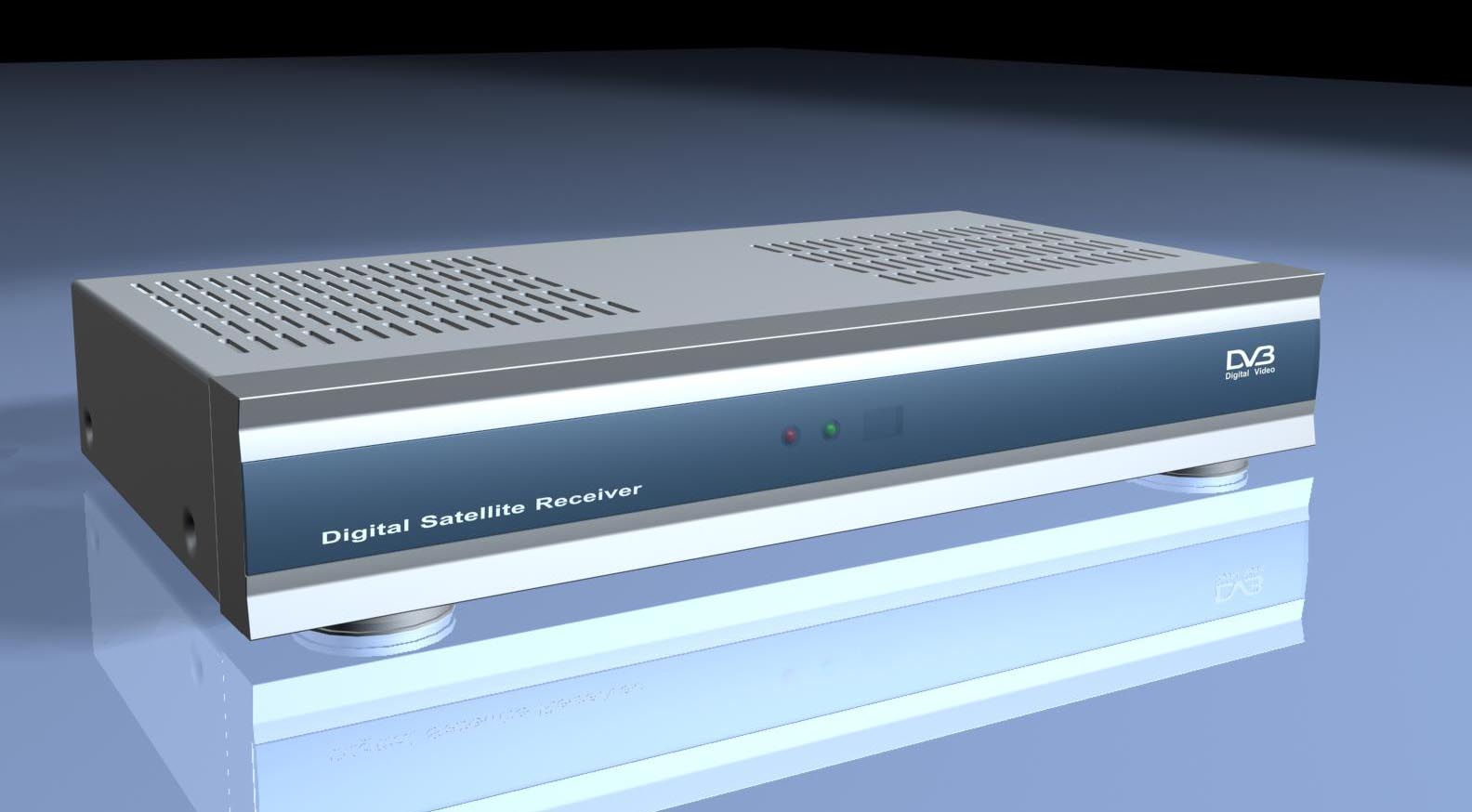

Hong Kong Digital Satllite Receiver

Specifications: 1. Features Fully dvb-s/mpeg-ii compliant Epg Plug and play self installing program set up 256 color osd with 720 x 576 resolution Rs-232 serial data transfer interface with max 115k baud rate Cvbs & rgb video out Manual pid insertion 2 scarts (tv.

VCR. ),4 phone (video, audio L/R, S/pdif) CD quality audio sound High quality audio output: Ac3 4:3,16:9 screen format selectable Power: Smps inserted More than 3,000 channels programmable (tv + radio) Pig function (picture in graphic) Super low threshold, sharp tuner User\'\'s friendly osd 11 languages suported Convenient update: Ota, pc->set, set->set, set->pc System capability Fully dvb-s/mpeg-ii compliant System capability Modulation qpsk Fec reed solomon + viterbi Symbol rate 1-45ms/s(scpc/mcpc) Convolution code 1/2,2/3,3/4,5/6,7/8 Input frequency 950-2150mhz Lnb power control 13v/18v,22khz tone Diseqc 1.0,1.2, usals Software update Ota, update from air PC ->stb stb ->tb stb ->pc Application system resources Main CPU sti5518 Flash 2mbytes SDRAM 8mbytes Video decoder Decompression mpeg2: Main profile level Video transfer rate up to 15mbits/sec Picture resolution 720x576(pal) 720x480(ntsc) Aspect ratio 4:3,16:9 Letter box, pan&scan, mixed, full Secam encoding supported Decoding teletext supported Pal encoding supported Decoding mpeg still supported On screen display graphics 256 bit colors Serial data interdface Signal rs-232 specification Data transfer rate 115.2 kbps max Audio decoder Decompression mpeg1, layer1,2 Sampling frequency 32,44.1,48khz Operation mode stereo, dual, mono, joint stereo Compression output ac3 Scart connector(tv/vcr) Output rgb, cvbs, audio L/R Rca connector Output video, audio L/R General features Full function infra-red remote control unit Dimension 300x200x60mm 255x185x40mm 220x160x35mm Full tuner loop through Power supply 95-240vac Voltage frequency 50hz
