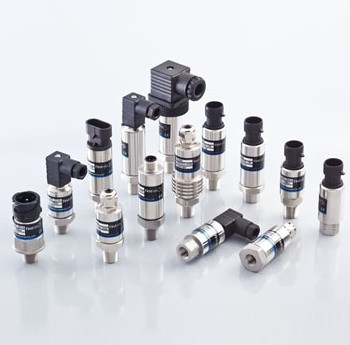

High temperature Pressure Transducer

FST800-216 high-temperature pressure transmitter is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm. It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment.

Its pressure chamber is made of imported 17-4PH stainless steel in an integrated way without welding seams or O-rings and free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter. The temperature compensation scope is from -40°C-150°C.

The transmitter is featured with the strong interference resistance, wide working temperature scope, and longterm stability, etc. The series products provide several optional pressure connections and electric connections for customers.

Product Features

Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles Heat radiation device installed, 150°C temperature compensation and capable of continuous operation under the high temperature Excellent resistance against impact, overload, shock and erosion Advanced digital temperature compensation and wide working temperature scope Highly-efficient lighting-absorption and strong RFI & EMI resistance,High accuracy, high frequency response and longterm stability

Applicable Scope High-temperature and high-pressure medical disinfection Measuring of high-temperature media, like steam and hot oil, etc Measuring and control in the boiler industry Measuring and control of high-temperature pressure in other automatic systems

Technical Indexes:

Pressure Type: gauge pressure absolute pressure sealed pressure Pressure Range(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 750 1000 1500 Pressure Range(psi):15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K 15K 20K Technical Index Signal Output :4~20mA 0~5VDC 0~10VDC Signal Line Specification:2wire 3wire 3wire Supply Voltage :9~30VDC 9~30VDC 15~30VDC Accuracy:±0.3%FS ±0.5%FS Zero Drift：±0.02%FS/°C Thermal Sensitivity Shift：±0.02%FS/°C Longterm Stability (1 Year)：±0.1%FS Frequency Response (-3dB)：3.2kHz Compensated Temperature：-40~+125°C Ambient Temperature：-40~+85°C Working Temperature：-40~+150°C Storage Temperature：-40~+125°C Overload Pressure：300% FS Burst Pressure：500% FS Mechanical Vibration：±20g Impact (11ms)：100g Environmental Protection：IP65 Wetted Parts：17-4PH Electromagnetic compatibility (EMC)：EN61000-6 Certificates：CE RoHS
